AirLink® Routers & Gateways Portfolio

Performance Series

Applications: Industrial IoT, Asset Monitoring, Public Transit, First Responders (Police, Fire, EMS), Oil & Gas, Water, Smart Grid, Video, Transportation

XR90
XR90
XR80
XR80
RX55
RX55
RV55
RV55
Cellular
5G, LTE CAT 20, LPWA, Dual 5G Radio (optional)
5G, LTE CAT 20, LPWA, Dual 5G Radio (optional)
LTE-A, HSPA+
LTE-A Pro, HSPA+
Max Cellular Speed (DL/UL)
5G: Up to 4.14 Gbps DL/660 Mbps UL
4G LTE CAT 20: Up to 2 Gbps DL/210 Mbps UL
5G: Up to 4.14 Gbps DL/660 Mbps UL
4G LTE CAT 20: Up to 2 Gbps DL/210 Mbps UL
LTE-A: 300/150
LTE-A Pro: 600/150
Wi-Fi
Dual 4X4 MIMO Wi-Fi 6 802.11 b/g/n/ac/ax
Single 5X4 MIMO Wi-Fi 6 802.11 b/g/n/ac/ax
Dual 1X1 SISO Wi-Fi 5
802.11 b/g/n/ac
Dual 1X1 SISO Wi-Fi 5
802.11 b/g/n/ac
Navigation
Assisted GNSS with inertial dead reckoning and integrated vehicle telemetry via ODBII/CAN
Assisted GNSS with inertial dead reckoning and integrated vehicle telemetry via ODBII/CAN
30 Channel GNSS
30 Channel GNSS
Interface
Single 5G- 4 RJ-45 Ethernet ports (1x5Gbps, 3x1Gbps)
Dual 5G – 5 RJ-45 Ethernet ports (1x5Gbps, 4x1Gbps)
1 USB 3.2 type-C port
2 RS-232 serial port (RJ-45 connector)
1 Aux Port (GPIO/CAN)
Single 5G- 3 RJ-45 Ethernet ports (1x 5Gbps with PTP IEEE 1588, 2x 1Gbps)
Dual 5G – 4 RJ-45 Ethernet ports (1x 5Gbps with PTP IEEE 1588, 4x 1Gbps)
1 USB 3.2 type-C port
2 RS-232 serial port (RJ-45 connector)
1 Aux Port (GPIO/CAN)
1 Ethernet (10/100/1000)
2 Serial (RS232) with accessory cable
1 CAN (RS232) with accessory cable
1 USB 2.0 (micro)
1 GPIO
1 Ethernet (10/100/1000)
2 Serial (RS232) with accessory cable
1 USB 2.0 (micro)
1 GPIO
SIM Slots
2
2
2
2
Enclosure
Die-Cast Aluminum
Die-Cast Aluminum
Die-Cast Aluminum
Die-Cast Aluminum
Voltage
7-36VDC
7-36VDC
7-36VDC
7-36VDC
RV50X
RV50X
MG90
MG90
MP70
MP70
Cellular
LTE-A, HSPA+
5G, LTE-A Pro, LTE-A, HSPA+ Dual Radio (optional)
LTE-A Pro, LTE-A, HSPA+
Max Cellular Speed (DL/UL)
LTE-A: 300/50
5G: 2/1 Gbps
LTE-A Pro: 600/150 Mbps
LTE-A: 300/50 Mbps
LTE-A Pro: 600/150
LTE-A: 300/50
Wi-Fi
N/A
Dual Radio 2.4/5GHz 802.11ac 3×3 MIMO 4 SSIDs
2.4/5GHz (optional)
802.11ac
3×3 MIMO 4 SSIDs
Navigation
30 Channel GNSS
48 Channel Dedicated GNSS with dead reckoning
48 Channel Dedicated GNSS with dead reckoning
Interface
1 Port 10/100/1000
1 Serial RS232
1 USB 2.0
1 GPIO
5 ports 10/100/1000
1 Serial RS232
2 USB 3.0
5 GPIO
1 Bluetooth
4 Ports 10/100/1000
1 Serial RS232
1 USB 2.0
5 GPIO
1 OBD-II/J1939
SIM Slots
2
4
2
Enclosure
Die-Cast Aluminum
Die-Cast Aluminum
Die-Cast Aluminum
Voltage
7-36VDC
7-36VDC
7-36VDC

FirstNet and FirstNet Ready are registered trademarks and service marks of the First Responder Network Authority, an independent authority within the U.S. Department of Commerce.

Essential Series

Applications: IoT/M2M, Building Automation, Digital Signage, Taxi, ATMs, Kiosks, POS, Lottery, Backup Connectivity, Smart Locker, IP Camera

LX60
LX60
LX40
LX40
Cellular
LTE, HSPA+
LTE, HSPA+
Max Cellular Speed (DL/UL)
LTE: 150/50
LTE: 150/50
Wi-Fi
2.4/5GHz (optional)
802.11ac
1×1 SISO
1 SSID
2.4/5GHz (optional)
802.11ac
1×1 SISO
1 SSID
Navigation
48 Channel Dedicated GNSS (optional)
No
Interface
2 Ports 10/100/1000
1 Serial RS232/485
1 USB 2.0
5 GPIO
1 Port 10/100/1000
1 USB 2.0
1 GPIO
PoE Support (powered device)
SIM Slots
1
1
Enclosure
Polycarbonate
Polycarbonate
Voltage
7-36V
7-36V, PoE – Powered Device

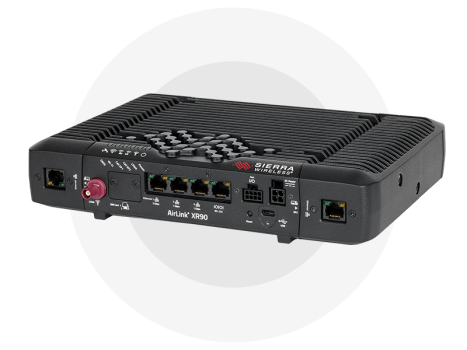

XR90-Product page-800x600

Download the AirLink Routers & Gateways Comparison Chart

Download our detailed comparison chart to compare the key features of our AirLink Routers & Gateways.
