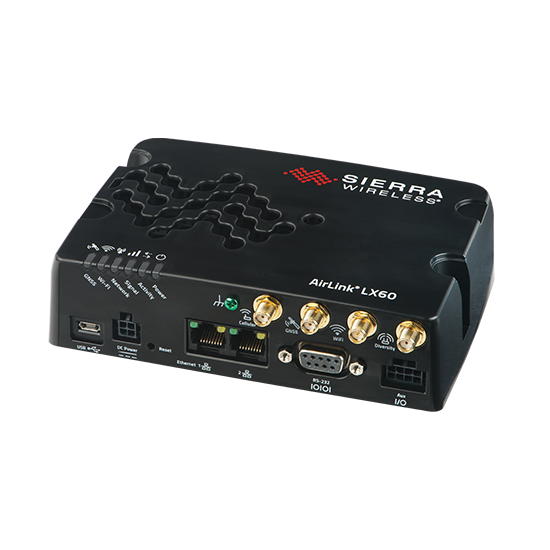

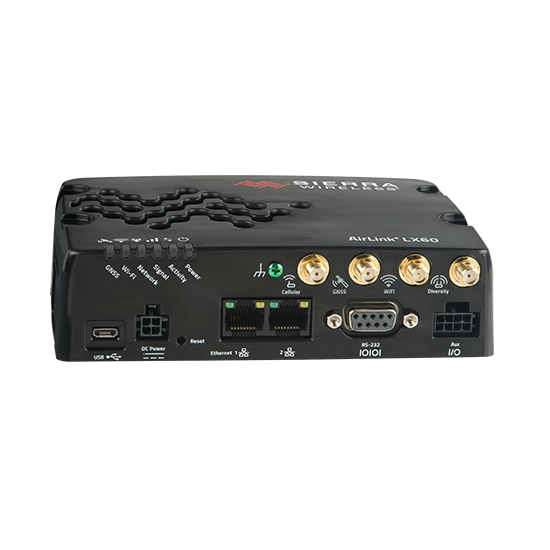

AirLink® LX60

Dual Ethernet 4G Router

The AirLink® LX60 provides LTE connectivity and Wi-Fi for primary and secondary/backup retail applications including ATMs, kiosks and POS terminals. The LX60 also supports taxis, fleets and IoT infrastructure applications in protected environments.

4G Cat-4
Single 1×1 Wi-Fi 5
2x Ethernet (1 Gbps)

Single Serial
GNSS
IP64 Rated
AirLink Complete

Use Cases

Primary or backup network connectivity for:

Benefits

Out-of-the box connectivity

Out-of-the box connectivity delivers same day operations

Ensures business continuity

Ensures business continuity through simplified failover

Connect anywhere

Connect anywhere without a need for wires or broadband

Expand new services

Expand new services with global device connectivity

Services & Support

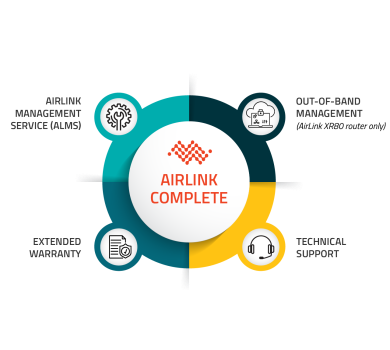

AirLink Complete

AirLink Complete is a subscription service that combines best-in-class device management software through AirLink Management Service (ALMS), industry-leading technical support and an extended warranty option. It delivers a cost-effective way to ensure your mission-critical infrastructure operates at peak efficiency. AirLink Complete is included free for 1 year with the purchase of a new LX60.

Advanced Mobility Reporting Option

This optional feature provides historical reporting capabilities as well as lightweight vehicle fleet reporting and management capabilities to monitor your mobile deployments.

AirLink Connection Manager

VPN appliance built from the ground up for AirLink routers & gateways
Simplify deployment and management of your VPN solution, extending the enterprise to the network edge for fixed and mobile endpoints
Carrier agnostic – ACM doesn’t require fixed and/or public IP
Compatible with FIPS 140-2, and always-on VPN capability

Antennas

Accelerate your deployment with always-on, end-to-end connectivity provided by our portfolio of high performance antennas.

AirLink® LX60 – Router Specifications

Print Specs

	North America	EMEA	Australia & New Zealand

CELLULAR
Peak D/L	Up to 150 Mbps, Cat-4 (WP7610)	Up to 150 Mbps, Cat-4 (WP7607)	Up to 150 Mbps, Cat-4 (WP7609)
Peak U/L	Up to 50 Mbps	Up to 50 Mbps	Up to 50 Mbp

4G LTE
Frequency Bands	B2, B4, B5, B12, B13, B17, B66	B1, B3, B7, B8, B20, B28	B1, B3, B5, B7, B8, B28

3G WCDMA/HSPA+
Frequency Bands	B2, B4, B5	B1, B8	B1, B5, B8

2G GSM/GPRS
Frequency Bands		900, 1800

Approvals
Regulatory	FCC, IC, PTCRB	GCF, CE	GCF, RCM
Carrier	AT&T, Verizon, T-Mobile

Part Numbers
Part Numbers	1104580, 1104572 (Wi-Fi + GNSS), 1104493 (Wi-Fi + GNSS + Telemetry)	1104046, 1104047 (Wi-Fi + GNSS)	1104048, 1104049 (Wi-Fi + GNSS)

Host Interfaces

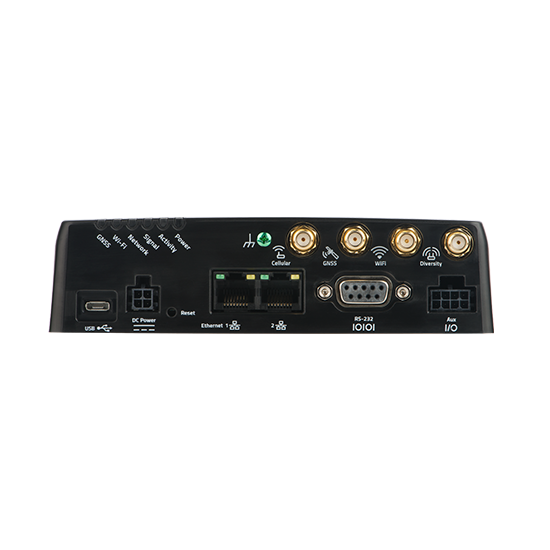

	2 Gigabit RJ-45 Ethernet ports RS-232 serial port (DB-9) USB 2.0 Micro-B Connector 3 SMA antenna connectors (cellular, diversity, GNSS) 1 RP SMA antenna connector (Wi-Fi) Active GNSS antenna support Aux Port (RS-485/GPIO)

SECURITY
	Remote Authentication (LDAP, RADIUS, TACACS+) DMZ Inbound and Outbound Port filtering Inbound and Outbound Trusted IP MAC Address Filtering PCI compatible Secure Firmware Update

SATELLITE NAVIGATION GNSS (OPTIONAL)
	Dedicated 48 channel GNSS Receiver supporting GPS, GLONASS, BeiDou, Galileo Tracking Sensitivity: -162 dBm Reports (Update Rate 1Hz): NMEA, TAIP Reliable Store and Forward via serial, TCP or UDP Inertial Navigation Sensors (Accelerometer and Gyro)

WI-FI (Optional)
	Dual Band 2.4/5GHz Wi-Fi 802.11 b/g/n/ac (Wave2 Client Mode) Support for 10 clients, WPA2 Enterprise Output power 16dBm Access Point or Client Mode (Wi-Fi as WAN) Single SSID Support Captive Portal

LAN (ETHERNET/USB)
	DHCP Server IP Passthrough VLAN Host Interface Watchdog PPPoE

ENVIRONMENTAL
Operating Temperature	-20°C to +65°C / -4°F to +149°F
Storage Temperature	-40°C to +85°C / -40°F to +185°F
Humidity	90% RH @ 60°C
	Military Spec MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity IP20 rated ingress protection

Power
Input/Operating Voltage	7 to 36 VDC
Power Modes	Low voltage disconnect to prevent battery drain Built-in protection against voltage transients including 5 VDC engine cranking Ignition Sense with time delay shutdown

INPUT/OUTPUT
	Configurable I/O (5 pins total) 5 Digital Inputs: ON Voltage: 2.7 to 36 VDC 1 Digital Open Collector Output > sinking 300 mA 3 Analog Inputs: 0.5-5/0.5-10 VDC (range selectable) Configurable Pull-ups for dry contact input

SERIAL
	TCP/UDP PAD Mode Modbus (ASCII, RTU, Variable) PPP DNP3 Interoperability

NETWORK AND ROUTING
	Network Address Translation (NAT) Reliable Static Route Port Forwarding Dynamic DNS Policy Routing Verizon PNTM NEMO/DMNR IPV6 Gateway VRRP

VPN
	IPsec, GRE, and OpenVPN Client Up to 5 concurrent tunnels Split Tunnel Dead Peer Detection (DPD)

ROUTER MANAGEMENT INTERFACES
	Local web user interface AT Command Line Interface (Telnet/SSH/Serial) SNMP SMS Commands

APPLICATION FRAMEWORK
	ALEOS Application Framework (AAF) LUA Scripting Language

EVENTS ENGINE
	Custom event triggers and reports Configurable interface, no programming
Event Types	Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature and Voltage
Report Types	RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV)
Event Actions	Drive Relay Output

VEHICLE TELEMETRY
	OBD II/ J1939 interface over serial (optional) Diagnostic real time alerts/reports (via AMM)

INDUSTRY CERTIFICATIONS
Safety	IECE Certification Bodies Scheme (CB Scheme), UL 60950
Vehicle Usage	ISO7637-2, SAE J1455 (Shock, Vibration, Electrical)
Environmental	RoHS2, REACH, WEEE
Hazardous Environments	Class 1 Div 2 – Ambient temperatures of 0ºC to +60ºC

SUPPORT AND WARRANTY
	1 year standard warranty with up to 5 years extended warranty with current AirLink Complete subscription. Unrestricted critical firmware updates.

ACCESSORIES
In The Box	LX60, DC Power Cable and Quick Start Guide
Other Accessories (sold separately)	2000579 AC Adapter, 12VDC 6001214 DIN Rail Bracket 6001004 I/O Cable 6001110 Cellular Paddle Antenna 6001111 Wi-Fi 2.4/5Hz Paddle Antenna For Telemetry Variant (1104493): 6001204 OBD-II Y Cable 6001192 J1939 Y Cable For Antenna options visit: sierrawireless.com/antennas

CONSTRUCTION
	Polycarbonate housings that meet MIL-810/IP21 environmental standards.

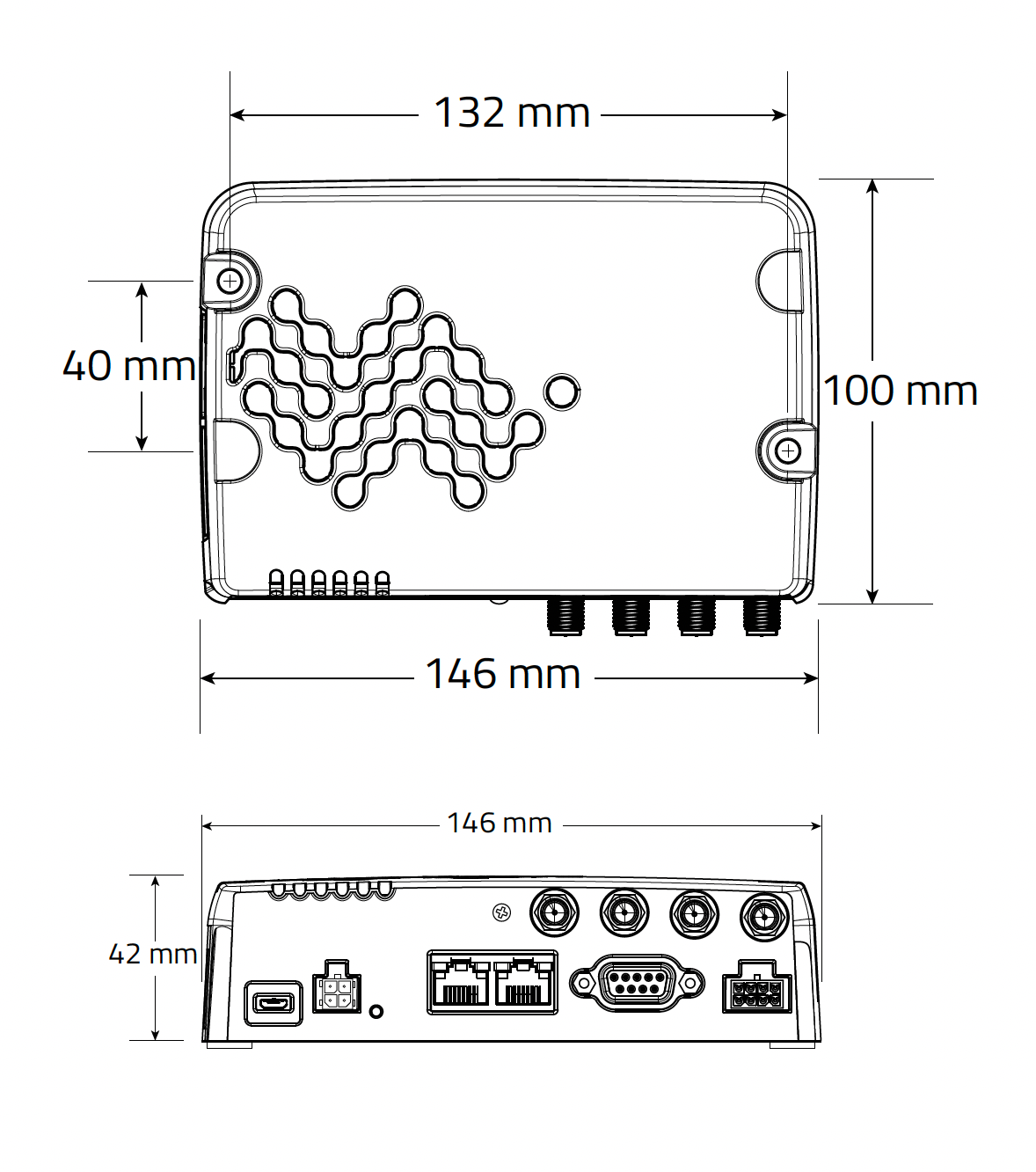

DIMENSIONS
	146 mm x 42 mm x 100 mm (106 mm including connectors) 5.74 in x 1.65 in x 3.93 in (4.17 in including connectors) 250g (weight)

*For carrier specific band support please refer to the hardware user guide.
