Sierra Wireless Antennas

Accelerate your deployment with always-on, end-to-end connectivity provided by our portfolio of high performance antennas.

Tested and certified to provide guaranteed performance with all AirLink routers and gateways, Sierra Wireless offers an extensive portfolio of antennas–designed to connect a wide range of mobile and fixed applications in public safety, utilities, industrial and distributed enterprises.

Antennas-500x350

Our Antennas

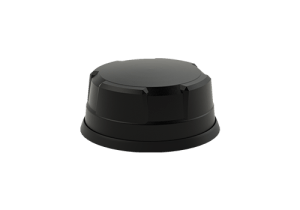

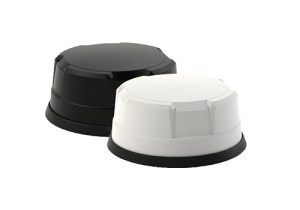

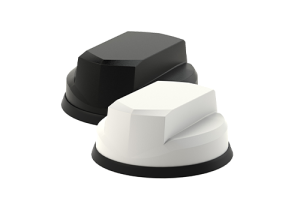

10-in-1 Dome
10-in-1 Dome
9in-1 Dome
9-in-1 Dome
8-in-1 Dome
8-in-1 Dome
5-in-1 Dome 5G
5-in-1 Dome 5G
6-in-1 Dome 5G
6-in-1 Dome 5G
Supported Technologies
4 x 5G/LTE 617-6000MHz (MiMo) + GNSS + 5 x Wi-Fi 2.4/5GHz
4 x 5G/LTE 617-6000MHz (MiMo) + GNSS + 4 x Wi-Fi 2.4/5GHz
4 x 5G/LTE 617-6000MHz (MiMo) + GNSS + 3 x Wi-Fi 2.4/5GHz
4 x 5G/LTE 617-6000MHz (MiMo) + GNSS
2 x 5G/LTE 617-6000MHz (MiMo) + GNSS + 3 x Wi-Fi 2.4/5GHz
Specifications
Mounting
Bolt*
Bolt*
Bolt*
Bolt*
Bolt*
Cable Length Extension
5m/16.4ft
5m/16.4ft
5m/16.4ft
5m/16.4ft
5m/16.4ft
Colour
Black/White
Black/White
Black/White
Black/White
Black/White
Recommended Application
Mobile
Mobile
Mobile
Mobile
Mobile
Dimensions (LxWxH)
180⌀x80mm
7.1×3.1in
180⌀x80mm
7.1×3.1in
180⌀x80mm
7.1×3.1in
180⌀x80mm
7.1×3.1in
180⌀x75mm
7.1x3in
Feature Highlights
Low profile form factor;
Omni-directional;
Improved GNSS;
Customized single solution for XR80
Low profile form factor;
Omni-directional;
Improved GNSS;
Customized single solution for XR90
Low profile form factor;
Omni-directional;
Improved GNSS;
Customized single solution for MG90 5G 4×4
Low profile form factor;
Omni-directional;
Improved GNSS;
Customized single housing for XR90 and XR80
Low profile form factor;
Omni-directional;
Improved GNSS;
Recommended for transit and truck installations
Supported Networks
CBRS, FirstNet, 5G NR
CBRS, FirstNet, 5G NR
CBRS, FirstNet, 5G NR
CBRS, FirstNet, 5G NR
CBRS, FirstNet, 5G NR
Recommended AirLink® Routers/Gateways
XR80
XR90
MG90 4×4
XR90, XR80
MG90, MP70
Datasheet Link
5-in-1 Dome
5-in-1 Dome

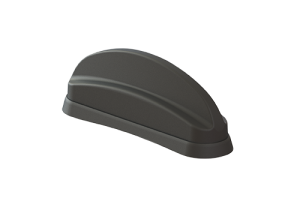

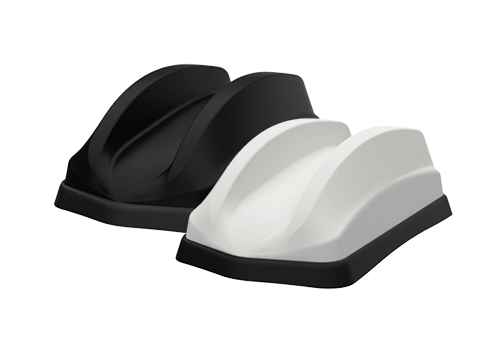

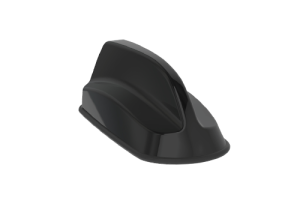

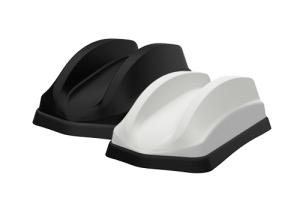

6-in-1 SharkFin
6-in-1 SharkFin

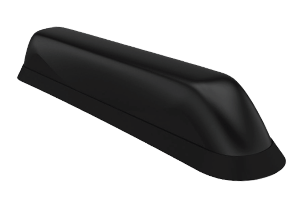

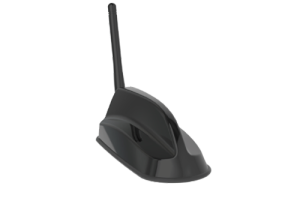

4-in-1 SharkFin
4-in-1 SharkFin

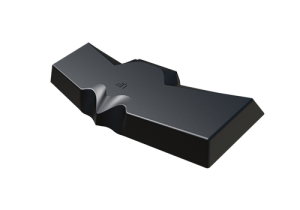

4-in-1 BAT
4-in-1 BAT
3-in-1 SharkFin
3-in-1 SharkFin
Supported Technologies
2 x LTE 617-6000MHz (MiMo) + GNSS + (1+1)Wi-Fi 2.4/5GHz
2 x LTE 698-3800MHz (MiMo) + GNSS + 3 x Wi-Fi 2.4/5GHz (MiMo)
2 x LTE 698-3800MHz (MiMo) + GNSS + 1 x Wi-Fi 2.4/5GHz
2 x LTE 617-6000MHz (MiMo) + GNSS + 1 x Wi-Fi 2.4/5GHz
2 x LTE 698-3800MHz (MiMo) + GNSS
Specifications
Mounting
Bolt*
Bolt*
Bolt*
Adhesive
Bolt*
Cable Length Extension
5m/16.4ft
4m/13.1ft
4m/13.1ft
3m/9.8ft
4m/13.1ft
Colour
Black
Black/White
Black
Black
Black
Recommended Application
Mobile
Mobile
Mobile
Fixed/Mobile
Mobile
Dimensions (LxWxH)
180⌀x80mm
7.1×3.1in
172x61x50mm
6.7×2.4x2in
172x61x50mm
6.7×2.4x2in
214x77x16.5mm
8.4×3.0x0.65in
172x61x50mm
6.7×2.4x2in
Feature Highlights
Low profile form factor;
Omni-directional;
Improved GNSS;
Customized single solution for RV55 Dual WiFi Radios
OEM robust design;
Omni-directional;
Improved GNSS;
Recommended for vehicle installations
OEM robust design;
Omni-directional;
Improved GNSS;
Customized solution for RV55 and LX60 Wi-Fi
Covert;
Adhesive mount LTE antenna with GNSS & Wi-Fi for telematics and IoT applications
OEM robust design;
Omni-directional;
Improved GNSS;
Ideal solution for basic router/gateway vehicle installation
Supported Networks
CBRS, FirstNet
CBRS, FirstNet
CBRS, FirstNet
CBRS, FirstNet
CBRS, FirstNet
Recommended AirLink® Routers/Gateways
RV55 Wi-Fi
MG90, MP70
RV55 Wi-Fi,
LX60 Wi-Fi
LX40 Wi-Fi,
LX60 Wi-Fi
MP70, RV55, RV50X
Datasheet Link
3-in-1 BAT
3-in-1 BAT

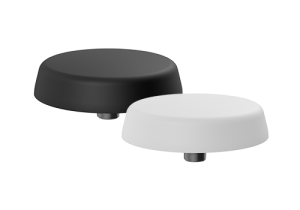

4-in-1 wi-Fi
4-in-1 Wi-Fi
3-in-1 wi-Fi
3-in-1 Wi-Fi
3-in-1 SharkFin wi-Fi
3-in-1 SharkFin Wi-Fi
2-in-1 SharkFin
2-in-1 SharkFin
Supported Technologies
2 x 5G/LTE 617-6000MHz (MiMo) + GNSS
4 x Wi-Fi 2.4/5GHz
3 x Wi-Fi 2.4/5GHz
3 x Wi-Fi 2.4/5GHz (MiMo)
2 x LTE 698-3800MHz (MiMo)
Specifications
Mounting
Adhesive
Bolt
Bolt
Bolt*
Bolt*
Cable Length Extension
3m/9.8ft
4m/13.1ft
4m/13.1ft
4m/13.1ft
4m/13.1ft
Colour
Black
Black/White
Black/White
Black
Black
Recommended Application
Fixed/Mobile
Mobile
Mobile
Mobile
Mobile
Dimensions (LxWxH)
214x77x16.5mm
8.4×3.0×0.65in
102mmx50mm
4x2in
102mmx50mm
4x2in
172x61x50mm
6.7×2.4x2in
172x61x50mm
6.7×2.4x2in
Feature Highlights
Covert;
Adhesive mount LTE antenna with GNSS for telematics and IoT applications
Low profile;
Dual-band 4×4 MIMO Wi-Fi;
Omni-directional;
Ideal solution for in-vehicle Wi-Fi AP
Low profile;
Dual-band 3×3 MIMO Wi-Fi;
Omni-directional;
Ideal solution for in-vehicle Wi-Fi AP
OEM robust design;
Omni directional;
Dual-band 2.4/5GHz 3×3 MIMO Wi-Fi antenna
OEM robust design;
Omni directional;
Best suited for MG90 second radio
Supported Networks
CBRS, FirstNet
N/A
N/A
N/A
CBRS, FirstNet
Recommended AirLink® Routers/Gateways
MP70, RV55, RV50X
XR90
MG90, MP70
MG90, MP70
MG90, RV55, LX60
Datasheet Link

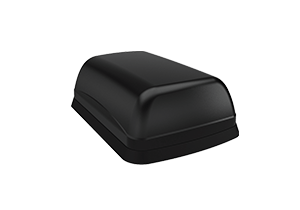

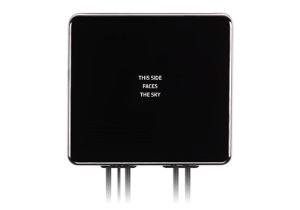

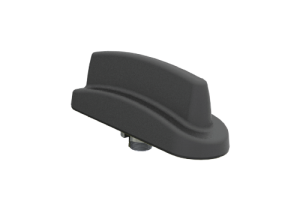

5-in-1 Panel
5-in-1 Panel
4-in-1 Panel
4-in-1 Panel
3-in-1 Panel 5G
3-in-1 Panel 5G
3-in-1 Panel
3-in-1 Panel
2-in-1 Panel
2-in-1 Panel
Supported Technologies
2 x LTE 617-6000MHz (MiMo) + GNSS + 2 x Wi-Fi 2.4/5GHz
2 x LTE 698-3800MHz (MiMo) + GNSS + 1 x Wi-Fi 2.4/5GHz
2 x 5G/LTE 617–6000MHz (MiMo) + GNSS
2 x LTE 698-3800MHz (MiMo) + GNSS
2 x LTE 698-3800MHz (MiMo)
Specifications
Mounting
Bolt**
Bolt**
Bolt**
Bolt**
Bolt**
Cable Length Extension
2m/6.5ft
2m/6.5ft
2m/6.5ft
3m/9.8ft
1m/3.3ft
3m/9.8ft
1m/3.3ft
Colour
Black
Black
Black
Black
Black
Recommended Application
Fixed
Fixed
Fixed
Fixed
Fixed
Dimensions (LxWxH)
238x63x90mm
9.2×2.5×3.5in
150x44x50mm
5.9×1.7×1.9in
238x63x90mm
9.2×2.5×3.5in
150x45x49mm
5.9×1.8×1.9in
150x45x49mm
5.9×1.8×1.9in
Feature Highlights
Bolt mount;
Fixed LTE MIMO antenna with GPS/GNSS and Wi-Fi elements suitable for versatile IoT applications
Bolt mount;
Fixed LTE MIMO antenna with GPS/GNSS and Wi-Fi elements suitable for versatile IoT applications
Bolt mount;
Fixed LTE MIMO antenna with GPS/GNSS suitable for versatile IoT applications
Bolt mount;
Fixed LTE MIMO antenna with GPS/GNSS ideal for IoT applications
Bolt mount;
Fixed LTE MIMO antenna ideal for IoT applications
Supported Networks
CBRS, FirstNet
CBRS, FirstNet
CBRS, FirstNet
CBRS, FirstNet
CBRS, FirstNet
Recommended AirLink® Routers/Gateways
RX55 Wi-Fi , RV55 Wi-Fi
RV55 Wi-Fi, LX60 Wi-Fi, LX40 Wi-Fi
RX55
MP70, RV55, RV50X, LX60
RV55, RV50X, LX40, LX60
Datasheet Link

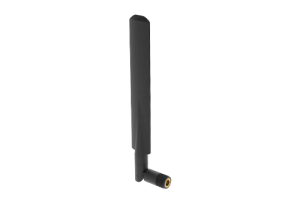

Paddle 5G
Paddle 5G

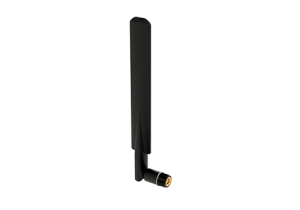

PAddle Cell
Paddle Cell
Paddle wi-Fi/Bluetooth
Paddle Wi-Fi/Bluetooth
Supported Technologies
LTE 617-6000MHz
LTE 698-3800MHz
Wi-Fi 2.4/5GHz or Bluetooth
Specifications
Mounting
Screw Thread
Screw Thread
Screw Thread
Cable Length Extension
N/A
N/A
N/A
Colour
Black
Black
Black
Recommended Application
Fixed
Fixed
Fixed
Dimensions (LxWxH)
176⌀x62mm
6.9×2.4in
41x7x163mm
1.6×0.3×6.4in
41x7x163mm
1.6×0.3×6.4in
Feature Highlights
Sleek ruggedized profile;
Robust hinge;
3G/4G LTE/5G NR
Sleek ruggedized profile;
Robust hinge;
2G/3G/4G LTE quad-band
Sleek ruggedized profile;
Robust hinge;
Dual-band Wi-Fi 2.4/5GHz
Supported Networks
CBRS, FirstNet, 5G NR
CBRS, FirstNet
N/A
Recommended AirLink® Routers/Gateways
MG90, MP70, RV55
MG90, MP70, RV55, RV50X, LX40, LX60
MG90, MP70, RV55, LX60, LX40
Datasheet Link

*Magnetic Mount Adapter Available for Demonstrations
**Bracket available for Wall, Mast or Pole mount
For more detailed information on Antennas, please visit The Source.
