Beyond Tough

AirLink Pro ruggedized routers keep you connected, no matter how tough the conditions get.
  NEW   – Meet the AirLink® XR60, the World’s Smallest Rugged 5G Router – Now with 5-Year Warranty, Support and Management. Limited-Time Offer!  Learn more →
When it comes to mission-critical applications, there is no room for compromise. The backbone of mission-critical communication lies in the reliable connectivity provided by rugged cellular routers. But not just any router can stand up to the task – only those designed, built and tested with a comprehensive and multi-faceted approach to ruggedness can truly deliver.
Durable Materials

Durable Materials

Die-cast aluminum enclosures

AirLink Pro routers are designed to withstand environmental stressors such as temperature changes and impacts common to outdoor and vehicle settings.

Their die-cast aluminum housing not only resists these stressors but also efficiently dissipates the thermal energy generated by high-performance 5G and LTE operations, preventing communication interruptions and ensuring longevity.

Shock and Vibration Resistance

Purpose-built for action in motion

AirLink Pro routers are purpose-built and certified for vehicle and rail usage*.

They are thoroughly tested to meet the stringent MIL-STD 810, SAE J1455, EN 50155 and EN 45545 standards*, allowing them to ensure reliable communications on the move.

*See industry certification details

Vibration test
Banner-Extreme Temperature-560x350

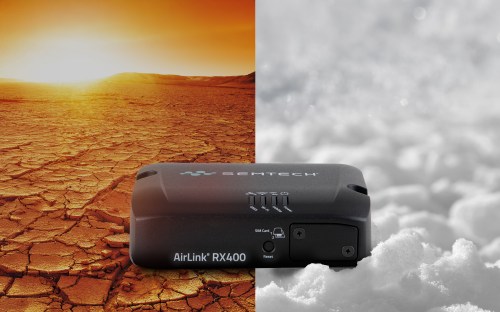

Extreme Temperature Resistance

Tested to meet military-grade requirements

A router mounted in an enclosed space or inside of a vehicle can be exposed to the hottest summer days and the coldest winter nights. AirLink Pro routers are built to function reliably in extreme temperatures, featuring a wide operating range of up to -40 to +70 °C (-40 to +158 °F)*.

They are tested to meet the rigorous MIL-STD 810** requirements to ensure they can withstand sudden temperature changes but also maintain performance at these extremes.

*Depending on models
**MIL-STD 810, Test Method 503 – Temperature Shocks

Dust Protection

IP64 certified

AirLink Pro routers are IP64 certified, offering complete protection against harmful dust ingress.

This is essential for maintaining the integrity of the router’s internal components, especially in dusty or sandy environments like construction, mining sites or deserts.

*Ingress Protection (IP)

Dust
Banner-water-test

Water Resistance

IP64 Certified

AirLink Pro routers are IP64* certified, ensuring resistance against water splashes from all directions.

Combined with a 95% relative humidity**, it allows you to keep your routers operational in damp and wet conditions.

*Ingress Protection (IP)
**95% RH at 60°C

Intrinsic Safety

Class 1 Div 2 certified

Many AirLink Pro routers are C1D2* certified for safe operation in hazardous environments such as oil and gas for upstream, midstream and downstream operations.

Designed to minimize ignition risks, they function safely in environments where flammable vapors or gases are used in closed containers or closed systems.

*Class 1 Division 2 certification is given by the National Fire Protection Association (NFPA) in the United States.

Banner-Intrinsic-Safety
Banner-voltage

Extreme Voltage Protection

Stay connected through voltage fluctuations

Routers used in grid or vehicle operations can be exposed to extreme voltage variations that can disrupt communications or ultimately cause damage.

AirLink Pro routers feature a +200 VDC built-in overvoltage and load dump protection, allowing them to resist the severe spikes in voltage associated with loose or disconnected battery terminals.

They also feature built-in brownout protection and can work as low as 5-7VDC to prevent the router from rebooting when the voltage momentarily drops and ensuring continuous operation during voltage dips, such as startup voltages in vehicles.

Accelerated Life Testing

Built to last

In the world of rugged routers, durability and reliability are the main measure of success. That’s why our routers are subject to accelerated life testing, a rigorous process that simulates over seven years of wear and tear on the product.

These tests replicate the harsh conditions and high-stress scenarios the routers could potentially face over their lifespan, including extreme temperatures, vibrations and power fluctuations.

Banner-Accelrated-Life

AirLink Pro Routers Industry Certifications

Environmental
Vehicle Usage
Rail Usage
Hazardous Environments
MIL-STD 810 United States Military Standard, developed by the U.S. Department of Defense, that provides a set of testing standards to assess an equipment’s resistance to the environmental conditions it will experience throughout its service life, and establishes chamber test methods that replicate the effects of environments on the equipment rather than imitating the environments themselves.
IP64Ingress Protection standard defined by the international standard EN 60529 that classifies the enclosure for electrical equipment as totally protected against dust and protected against water splashed from all directions.
E-Mark European conformity mark that proves a vehicle or vehicle component complies with regulations, laws and directives in the European Union.
ISO 7637-2International electromagnetic compatibility vehicle standard published by the International Organization for Standardization (ISO), around electrical transient conduction along supply lines.
SAE J1455 Test standard developed by SAE International (Society of Automotive Engineering). Includes a set of recommended set of specifications around the performance and reliability requirements of electronic equipment designed for heavy duty on and off-road vehicles.
EN 50155European standard for electronic equipment used in rolling stock for railway applications.
EN 45545European Railway Standard For Fire Safety.
C1D2Certification given by the National Fire Protection Association (NFPA) in the United States for equipment used in locations where volatile flammable liquids or gases are handled, processed or used in closed containers or closed systems.
XR90
XR80
XR60
MP70
RX55
RV55

AirLink Pro Routers Industry Certifications

Environmental
Vehicle Usage
Rail Usage
Hazardous Environments
MIL-STD 810 United States Military Standard, developed by the U.S. Department of Defense, that provides a set of testing standards to assess an equipment’s resistance to the environmental conditions it will experience throughout its service life, and establishes chamber test methods that replicate the effects of environments on the equipment rather than imitating the environments themselves.
IP64Ingress Protection standard defined by the international standard EN 60529 that classifies the enclosure for electrical equipment as totally protected against dust and protected against water splashed from all directions.
E-Mark European conformity mark that proves a vehicle or vehicle component complies with regulations, laws and directives in the European Union.
ISO 7637-2International electromagnetic compatibility vehicle standard published by the International Organization for Standardization (ISO), around electrical transient conduction along supply lines.
SAE J1455 Test standard developed by SAE International (Society of Automotive Engineering). Includes a set of recommended set of specifications around the performance and reliability requirements of electronic equipment designed for heavy duty on and off-road vehicles.
EN 50155European standard for electronic equipment used in rolling stock for railway applications.
EN 45545European Railway Standard For Fire Safety.
C1D2Certification given by the National Fire Protection Association (NFPA) in the United States for equipment used in locations where volatile flammable liquids or gases are handled, processed or used in closed containers or closed systems.
XR90
XR80
XR60
MP70
RX55
RV55
