Benefits

Compact size

Compact size makes installation easier

Out-of-the box connectivity

Out-of-the box connectivity delivers same day operations

Connect to a wide variety

Connect to a wide variety of devices from video to low-power IoT

Leverage the world of IoT

Leverage the world of IoT to drive new business opportunities

Services & Support

AirLink Complete

Maximize your router investment with AirLink Complete — a comprehensive service package designed to empower you with the tools and support necessary to secure, optimize and effortlessly scale your router deployments.

AirLink Complete subscriptions include*:

*With active subscription. 1-year subscription included with the router purchase.

AirLink Complete Diagram
ES-Hybrid Cloud- Diagram

Hybrid Cloud Option

This optional security feature merges the benefits of cloud technology with on-premise security controls for the management of your AirLink XR and RX routers, offering ultimate security and control.

AirLink Premium Upgrade

Ideal for organizations managing mission-critical vehicle fleets, this service upgrade encompasses all the benefits of AirLink Complete, enhanced with:
  • Advanced Mobility Reporting: Offers comprehensive coverage and fleet reporting to monitor your network and vehicles.
  • Advance Replacement: Provides same-day shipping for in-warranty router replacements, minimizing downtime, spare inventory and keeping your operations running smoothly.
Advanced Mobility Reporting AMR-laptop
ACM-Icon

AirLink Connection Manager

  • VPN appliance built from the ground up for AirLink routers & gateways
  • Simplify deployment and management of your VPN solution, extending the enterprise to the network edge for fixed and mobile endpoints
  • Carrier agnostic – ACM doesn’t require fixed and/or public IP
  • Compatible with FIPS 140-2, and always-on VPN capability

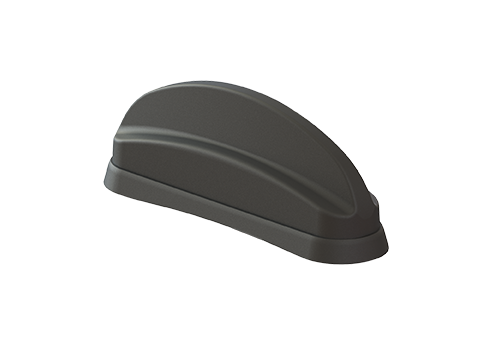

Antennas

Accelerate your deployment with always-on, end-to-end connectivity provided by our portfolio of high performance antennas.

Antennas-Panel

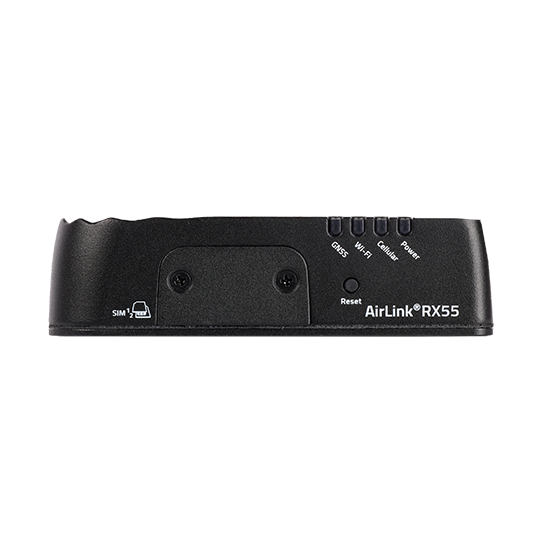

AirLink® RX55 – Router Specifications

KEY FEATURES
Cellular Radios
4G LTE-A
Wi-Fi
Dual 1×1 Wi-Fi 5
Ethernet
1x 1 Gigabit Ethernet Port (RJ45)
Serial
Dual RS-232 serial port (DB9) – Base Model (with optional Y-cable)
Single RS-232 serial port (DB9) – Wi-Fi & Wi-Fi Plus Model
GNSS
30 Channel GNSS
CAN
Wi-Fi & Wi-Fi Plus Model
I/O
1 GPIO
USB
USB 2.0 Micro-B
Bluetooth
IP Rating
Sealed Aluminum Housing (IP64 Rated)
Services
AirLink Complete
Operating System
AirLink OS
Management System
ALMS
Region
North America
EMEA & APAC
CELLULAR
Technology
LTE-A
LTE-A
Cellular
4G, 3G
4G, 3G
Peak Downlink (Theoretical)
300 Mbps
300 Mbps
Peak Uplink (Theoretical)
150 Mbps
150 Mbps
Category
Cat-7
Cat-7
Region
NAM
EMEA, APAC
Radio
EM7411
EM7421
MIMO
2×2
2×2
RF Connectors
SMA
SMA
SIM
Dual SIM (Mini-2FF)
Dual SIM (Mini-2FF)
FREQUENCY BANDS
5G Bands
4G LTE Bands
B2, B4, B5, B7, B12, B13, B14, B25, B26, B41, B42, B43, B48, B66, B71
B1, B3, B7, B8, B20, B28, B32, B38, B40, B41, B42, B43
3G HSPA+ Bands
B2, B4, B5
B1, B5, B8
2G GPRS Bands
LPWA
WIRELESS CERTIFICATION
Regulatory
FCC, IC, PTCRB
GCF, CE, RED, RCM
Carrier
Verizon, AT&T, T-Mobile
Planned: Bell, Telus, Rogers, CBRS
Planned: Telstra
Public Safety
FirstNet®
Part Numbers
1104927 Base
1104928 Wi-Fi
1104934 Wi-Fi Plus
1104929 Base
1104930 Wi-Fi
1104933 Wi-Fi Plus
WI-FI (OPTIONAL)
Wi-Fi Standard
Wi-Fi 5
Access Point
Dual
Client (Depot/WAN)
Yes
Client & AP
Yes
Peak Throughput (Theoretical)
433 Mbps
MIMO
Dual 1×1
Security
WPA2 Enterprise
Clients
10 per radio
SSID
1 per radio
Output Power
16 dBm
Frequency
2.4/5 GHz
RF Connectors
SMA (Reverse Polarity)
ENVIRONMENTAL
Operating Temperature
-40°C to +70°C / -40°F to +158°F
-30°C to +70°C / -22°F to +158°F (Wi-Fi variant)
Storage Temperature
-40°C to +85°C / -40°F to +185°F
Humidity
95% RH @ 60°C
Military Specification
MIL-STD-810G (Shock, Vibration, Thermal Shock, Humidity)
IP Rating
IP64
INDUSTRY CERTIFICATIONS
Safety
IECEE Certification Bodies Scheme (CB Scheme)
Vehicle Usage
E-Mark (UN ECE Regulation 10.04), ISO7637-2, SAE J1455 (Shock, Vibration, Electrical)
Environmental Directives
RoHS2, REACH, WEEE, Prop 65
Hazardous Environments
Class 1 Div 2 – Ambient temperatures of -30°C to +60°C
IECEx & ATEX
Rail Usage
North America: EN50155 (Pending)
EMEA & APAC: EN50155/EN45545 (Rolling Stock)
POWER
Input Voltage
7 to 36 VDC
Power Consumption
LTE Idle Power: 900mW (75 mA @ 12VDC)
Standby Mode Power: 53 mW (4.4 mA @ 12 VDC)
triggered on low voltage, I/O or periodic timer
Power Modes
Low voltage disconnect to prevent battery drain;
Built-in protection against voltage transients including 5 VDC engine cranking and +200 VDC load dump;
Ignition Sense with time delay shutdown;
Configurable features and ports to optimize power consumption
SECURITY
AAA
802.1x /Radius authentication with Wi-Fi and Ethernet
Firewall
Stateful firewall with port forwarding, DMZ
WLAN Encryption
WPA2/WPA3 Personal/Enterprise
Firmware Update
Secure Firmware Update
NETWORK AND ROUTING
Cognitive Wireless
IPv4 and IPv6 Routing
Network Address Translation (NAT)
Port Forwarding
DHCP Server
IP Passthrough
LAN Segmentation
IPv4 Passthrough and IPv6 Prefix Extension
WAN/LAN Connection Policy Management
Policy-Based Routing
Configurable MTU size
Static Routing
WAN Ethernet
QoS
Application/Traffic Priority Queuing
WAN Monitors
Connection Failure Recovery
LAN (ETHERNET/USB)
VPN
Integrated with ACM VPN Server
IPsec protocol with IKEv1/IKEv2
FIPS 140-2 Level 1 compliant
Encryption
AES128/AES192/AES256
Hashing
SHA256/SHA384/SHA512
Key Exchange
DHGroup14/15/16/17/18/19/20/21
LAN to LAN and Host to LAN
Up to 10 concurrent tunnels per link
MOBIKE protocol
IP compression
Full/Split Tunnel
Dead Peer Detection (DPD)
ROUTER MANAGEMENT INTERFACES
ALMS
Local web user interface
REST API (Beta)
EDGE COMPUTING
Support for Edge Compute Containerized Applications (Beta)
RAM1,2
50 MB (Base & Wi-Fi)
200 MB (Wi-Fi Plus)
Storage (Flash)1
200 MB (Base & Wi-Fi)
2.8 GB (Wi-Fi Plus)
CPU
Dual Core ARMv7 32-bit
1 Approximation available to containers (not device total)
2 Depends on other enabled features
AIRLINK SERVICES
Services
AirLink Complete
Support
24/7 with current AirLink Complete subscription
Warranty
1 year standard warranty with up to 5 years extended warranty with current AirLink Complete subscription
Device Management
ALMS with current AirLink Complete subscription
Software Updates
Unrestricted critical firmware updates
RELIABILITY
MTBF
ACCESSORIES
In The Box
RX55, DC Power Cable and Quick Start Guide, AirLink Complete Leaflet
Other Accessories (sold separately)
2000579 AC Adapter, 12VDC
6000659 DIN Rail Bracket
6001238 Dual Serial Y-cable
6001479 Serial CAN Y-cable
For Antenna options visit: here

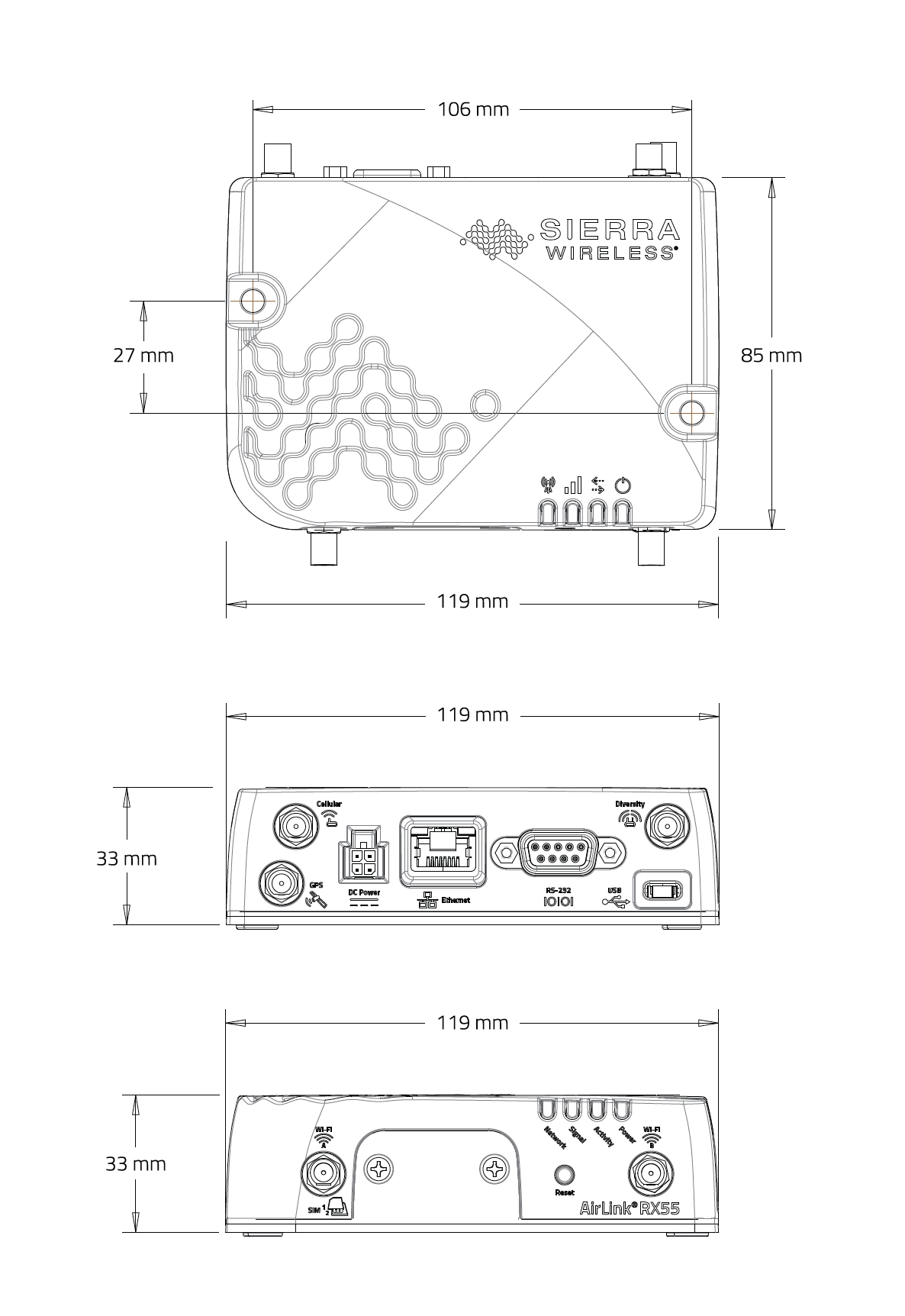

DIMENSIONS
Size
119 mm x 33 mm x 85 mm (102 mm including Wi-Fi connectors)
Weight
320 g
RX55 dimension

*For carrier specific band support please refer to the hardware user guide.
