Use Cases

Mobile mission critical applications in public safety, transit and field services. Delivers secure always-on Vehicle Area Networks (VANS) for:

Benefits

5G LTE connectivity delivers

5G LTE connectivity delivers massive amounts of real-time data needed for mission-critical applications

More than 25% of the top 50

More than 25% of the top 50 transit agency vehicles and 75% of high-performance EMS systems depend on Sierra Wireless routers

Safety, transparency and compliance

Safety, transparency and compliance increased while maximizing system expandability and ROI

Delivers advanced awareness

Delivers advanced awareness of fleet operations with built-in vehicle I/O for remote monitoring of auxiliary devices such as light bars, sirens and gun racks

Services & Support

Device Management

AirLink Mobility Manager (AMM) delivers end-to-end network management that enables simplified, remote and real-time mass configuration, control and troubleshooting.

VPN

AirLink Connection Manager (ACM) is a mobile-optimized VPN solution that securely extends the enterprise network to the vehicle.
ACM-Icon-02
Banner-Support-560x350

AirLink Support

Best-in-class support services covering MG90 devices, connected mobile assets and applications.

Antennas

Tested and certified to provide guaranteed performance with AirLink MG90 devices—designed to connect a wide range of mobile applications in public safety, transit and distributed enterprises.
Antennas-500x350

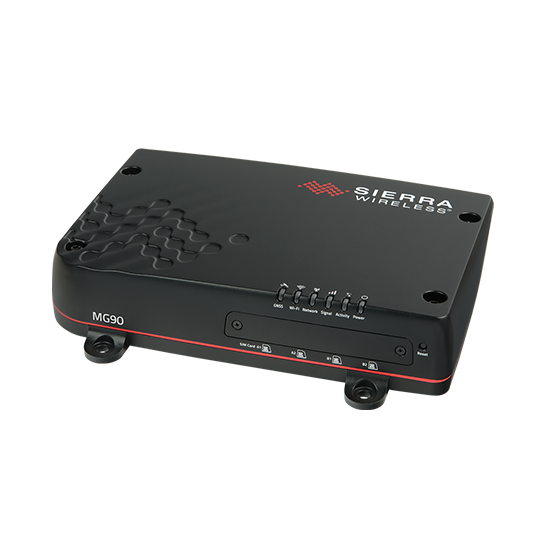

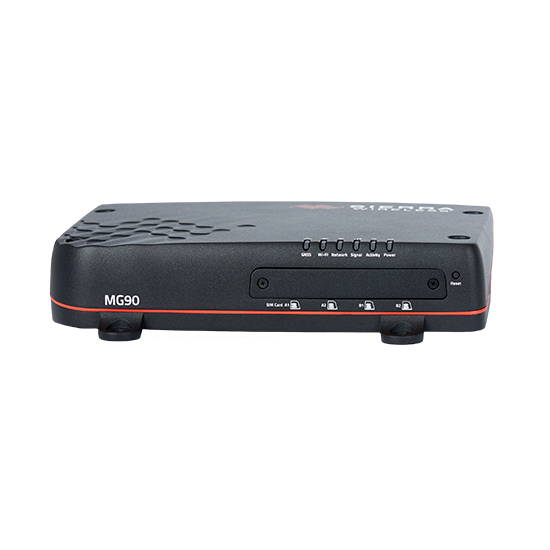

AirLink® MG90 – Router Specifications


MG90 5G
MG90 LTE-A PRO
CELLULAR
Peak D/L
Up to 4.14 Gbps, Cat 20
Up to 600 Mbps, Cat 12
Peak U/L
Up to 660 Mbps
Up to 150 Mbps
5G
Frequency Bands
Sub-6: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41*, n48, n66, n71, n77, n78, n79
4G LTE
Frequency Bands
North America
2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 1800(B9), 700(B12), 700(B13), 700(B14), 850(B18), 850(B19), 800(B20), 850(B26), 700(B29), 2300(B30), 1500(B32), TDD B41, TDD B42, TDD B43, TDD B46, CBRS B48, 1700(B66)
Global
2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 700(B12), 700(B13), 700(B14), 700(B17), 850(B18), 850(B19), 800(B20), 1900(B25), 850(B26), 700(B28), 700(B29), 2300(B30), 1500(B32), TDD B38, TDD B39, TDD B40, TDD B41, TDD B42, TDD B46, CBRS B48, 1700(B66), 600(B71)
2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 1800(B9), 700(B12), 700(B13), 850(B18), 850(B19), 800(B20), 850(B26), 700(B28), 700(B29), 2300(B30), 1500(B32), TDD B41, TDD B42, TDD B43, TDD B46, CBRS B48, 1700(B66)
3G WCDMA/HSPA+
Frequency Bands
North America
2100(B1), 1900(B2), AWS(B4), 850(B5), 800(B6), 900(B8), 1700(B9), 850(B19)
Global
2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 800(B6), 900(B8), 1700(B9), 850(B19)
2100(B1), 1900(B2), AWS(B4), 850(B5), 800(B6), 900(B8), 1700(B9), 850(B19)
Approvals
Regulatory
North America
FCC, IC, PTCRB, GCF
Global
FCC, IC, PTCRB, GCF, CE, RED, RCM
CE, RED, RCM
Carrier
North America
AT&T, FirstNet, Verizon, T-Mobile, US Cellular, Telus, Rogers
Global
AT&T, T-Mobile, Verizon (4G), US Cellular
Part Numbers
North America
1103981 (Single), 1103982 (Dual)
Global
1104708 (Single 4×4), 1104709 (Dual 2×2)
1103980 (Single), 1103983 (Dual)

*only supported on 4x4 configuration

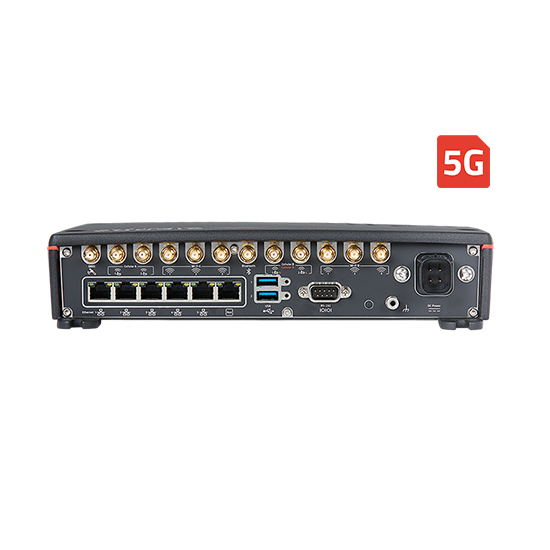

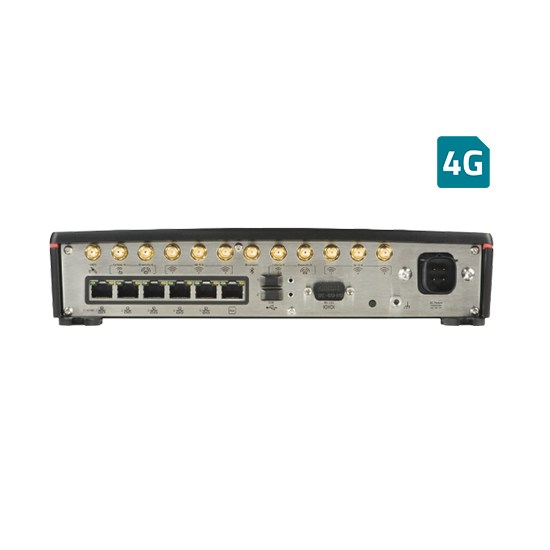

Host Interfaces
5 Gigabit RJ-45 Ethernet ports
2 USB 3.0 type-A ports
1 RS-232 serial port (DB-9 connector)
1 Auxiliary RJ-45 Input/Output port
4 SIM Slots (Dual SIM per radio)
5 SMA antenna connectors (2 cellular, 2 diversity, 1 GNSS)
7 RP-SMA antenna connectors (3×3 Wi-Fi WAN, 3×3 Wi-Fi AP, 1 Bluetooth)
SECURITY
AAA
802.1x/Radius authentication with Wi-Fi and Ethernet
Firewall
Port forwarding and filtering
WLAN Encryption
WLAN Encryption: WPA2 Personal/Enterprise WLAN MAC Address filtering FIPS 140-2
SATELLITE NAVIGATION (GNSS)
Dedicated 48 channel GNSS Receiver supporting GPS, GLONASS, BeiDou, Galileo
Tracking Sensitivity: -162 dBm
Reports (Update Rate 1Hz): NMEA, TAIP
Reliable Store and Forward via serial, TCP or UDP
Inertial Navigation Sensors (Accelerometer and Gyro)
WI-FI
Dual Radio, dual concurrent 3×3 MIMO 802.11 b/g/n/ac
Dual Band 2.4/5 GHz (each radio)
Support for 128 clients
WWPA2 Enterprise
Default mode: Wi-Fi as WAN and Wi-Fi built-in vehicle AP
High output power 21 dBm (per channel)
Captive Portal
LAN (ETHERNET/USB/ WI-FI/BLUETOOTH/ SERIAL)
DHCP Server
VLAN
Virtual BSSIDs
PPPoE
AP Isolation
ENVIRONMENTAL
Operating Temperature
-30°C to +70°C / -22°F to +158°F
Storage Temperature
-40°C to +85°C / -40°F to +185°F
Humidity
95% RH @ 60C
IP64 rated ingress protection
MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity
Power
Input/Operating Voltage
7 to 36 VDC
Power modes
On 30W (2.5A @12V); Standby 135mW (11mA@12V)
Built-in protection against voltage transients including 5 VDC engine cranking
Ignition Sense with time delay shutdown
INPUT/OUTPUT
Configurable I/O GPIOs (5 pins total – 4 DB9 & 1 Power connector)
Digital input: 0-36 VDC with optional pullup (Dry contact sense input)
Digital Open Collector Output > sinking 500 mA
NETWORK AND ROUTING
Network Address Translation (NAT)
LAN Segmentation
WAN/LAN Connection Policy Management
QoS
Application/ Traffic Priority Queuing
Load Balancing Over Multiple WAN Links
WAN Monitors
Connection Failure Recovery
Configurable MTU size
Multiple LAN Support
VPN
Integrated with ACM VPN Server
IPsec protocol with IKEv1/IKEv2
Encryption
3DES/AES128/AES256
Hashing
MD5/SHA1/SHA256/SHA512
Key Exchange
DHGroup2/5/14/15/16/17
Support LAN to LAN and Host to LAN
Up to 10 concurrent tunnels per link
MOBIKE protocol IP compression
Full/Split Tunnel
Dead Peer Detection (DPD)
VEHICLE TELEMETRY
OBD II/ J1939/ J1708 interface over serial (optional)
Diagnostic real time alerts/reports (via AMM)
INDUSTRY CERTIFICATIONS
Safety
IECEE Certification Bodies Scheme (CB Scheme), UL 60950
Vehicle Usage
E-Mark (72/245/EEC, 2009/19/EC), ISO7637- 2, SAE J1455 (Shock & Vibration)
Environments
RoHS2, REACH, WEEE
Rail Usage
EN50155 (Rolling Stock)
RELIABILITY
MTBF
23.22 years (Telcordia SR-332 Issue3 Method1)
SUPPORT AND WARRANTY
3-year standard warranty; Extended warranty included (up to 5 years) with a valid AirLink Support subscription. Also provides Unrestricted firmware updates.
ACCESSORIES
In The Box
MG90, DC Power cable, Quick Start Guide and SMA wrench
Options
  • Mounting bracket (6001024)
  • AC Adapter (6001023)
  • I/O Cable (6001095)
  • 8-in-1 Dome Antenna (6001344 Black/6001345 White)
  • 6-in-1 Dome Antenna (6001364 Black/ 6001363 White)
  • 3-in-1 Wi-Fi Antenna (6001283 Black/6001284 White)
For Antenna options visit: sierrawireless.com/antennas
DIMENSIONS
272mm x 220mm x 60mm (10.71in x 8.66in x 2.36in)
Weight
2.4kg / 5.3 lb
