Use Cases

Mobile mission critical applications in public safety and field services. Enables robust and secure Vehicle Area Networks (VANS) for:

Benefits

More than half of the Top 100 police departments

More than half of the Top 100 police departments rely on our routers in cruisers and incident response vehicles

Delivers reliable results

Delivers reliable results in your real-world conditions

Video, voice and data applications

Video, voice and data applications all work together - when and how you need them

Work further and faster

Work further and faster from the vehicle than ever before

Services & Support

AirLink Complete

AirLink Complete is a subscription service that combines best-in-class device management software through AirLink Management Service (ALMS), industry-leading technical support and an extended warranty option. It delivers a cost-effective way to ensure your mission-critical infrastructure operates at peak efficiency. AirLink Complete is included free for 1 year with the purchase of a new MP70.

AirLink Complete Diagram
Advanced Mobility Reporting AMR-laptop

AirLink Premium Upgrade

Ideal for organizations managing mission-critical vehicle fleets, this service upgrade encompasses all the benefits of AirLink Complete, enhanced with:
  • Advanced Mobility Reporting: Offers comprehensive coverage and fleet reporting to monitor your network and vehicles.
  • Advance Replacement: Provides same-day shipping for in-warranty router replacements, minimizing downtime, spare inventory and keeping your operations running smoothly.

AirLink Connection Manager

  • VPN appliance built from the ground up for AirLink routers & gateways
  • Simplify deployment and management of your VPN solution, extending the enterprise to the network edge for fixed and mobile endpoints
  • Carrier agnostic – ACM doesn’t require fixed and/or public IP
  • Compatible with FIPS 140-2, and always-on VPN capability
ACM-Icon

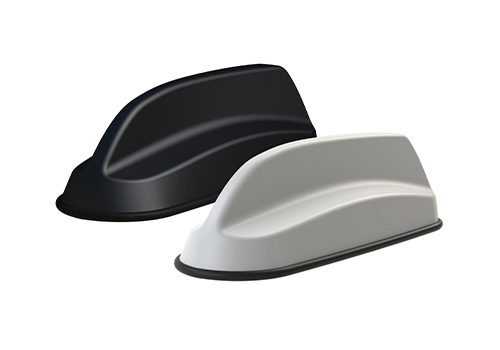

Antennas

Accelerate your deployment with always-on, end-to-end connectivity provided by our portfolio of high performance antennas.

Antennas-Sharkfin

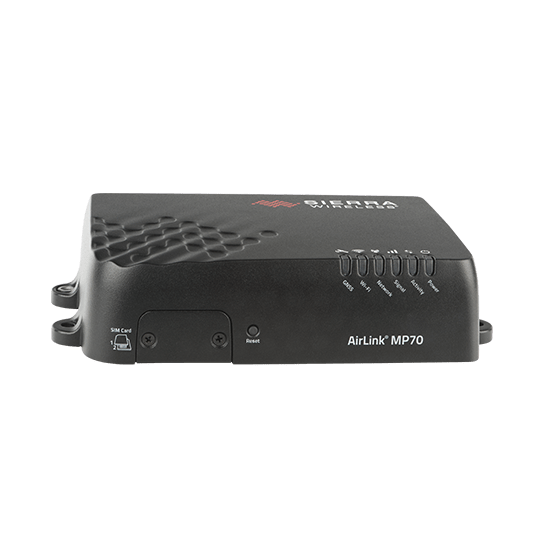

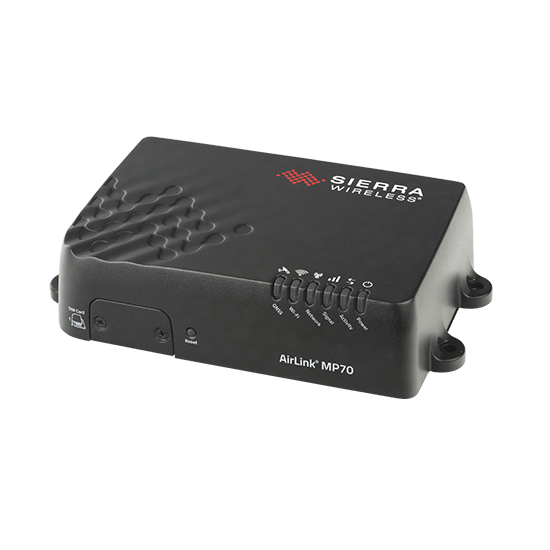

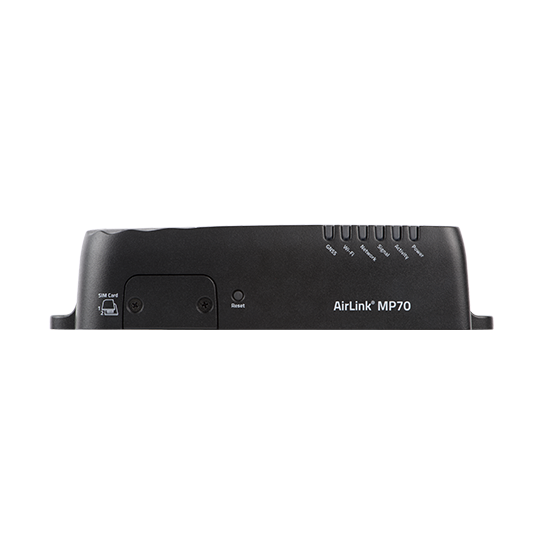

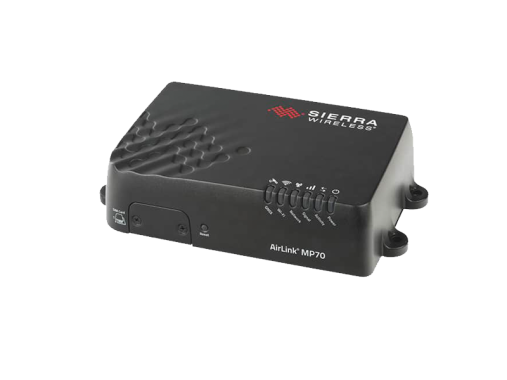

AirLink® MP70 – Router Specifications


North America
Global
CELLULAR
Peak D/L
Up to 600 Mbps, Cat 12
Up to 600 Mbps, Cat 12
Peak U/L
Up to 150 Mbps
Up to 150 Mbps
4G LTE
Frequency Bands
B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B18, B19, B20, B26, B29, B30, B32, B41, B42, B43, B46, CBRS B48, B66
B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66
Public Safety Bands
Band 14 (United States), FirstNet
Band 26, 28
3G WCDMA/HSPA+
Frequency Bands
B1, B2, B4, B5, B6, B8, B9, B19
B1, B2, B4, B5, B6, B8, B9, B19
Approvals
Regulatory
FCC, PTCRB, IC/ISED
CE, GCF, RED, RCM
Carrier*
AT&T, Verizon, T-Mobile, Rogers, Telus, Southern Linc
Telstra
Part Numbers
Part Numbers
1104071, 1104073 (Wi-Fi)
1104072, 1104074 (Wi-Fi)

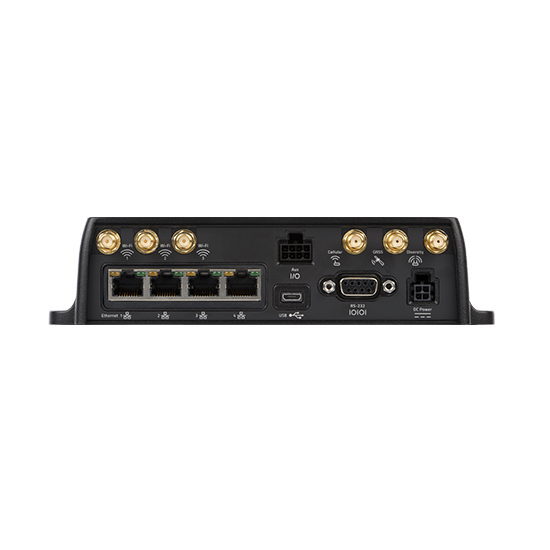

Host Interfaces
4 Gigabit RJ-45 Ethernet ports
RS-232 serial port (DB-9)
USB 2.0 Micro-B Connector
3 SMA antenna connectors (cellular, diversity, GNSS)
Active GNSS antenna support
SECURITY
Remote Authentication (LDAP, RADIUS, TACACS+) DMZ
Inbound and Outbound Port filtering
Inbound and Outbound Trusted IP
MAC Address Filtering
PCI compatible
Secure Firmware Update
FIPS 140-2
SATELLITE NAVIGATION (GNSS)
Dedicated GNSS Receiver supporting GPS, GLONASS, BeiDou, Galileo
Tracking Sensitivity: -162 dBm
Reports: NMEA 0183 V3.0, TAIP, RAP, XORA
Multiple Redundant Servers
Reliable Store and Forward
Inertial Navigation Sensors (Accelerometer and Gyro)
WI-FI (Optional)
Dual Band 2.4/5GHz Wi-Fi
802.11 b/g/n/ac with support for 128 clients
WPA2 Enterprise
High output power
Simultaneous AP/Client Mode
WiFi as WAN Mode (Multiple SSIDs, Captive Portal)
LAN (ETHERNET/USB)
DHCP Server
IP Passthrough
VLAN
Host Interface Watchdog
PPPoE
ENVIRONMENTAL
Operating Temperature
-30°C to +70°C / -22°F to +158°F
Storage Temperature
-40°C to +85°C / -40°F to +185°F
Humidity
95% RH @ 60°C
Military Spec MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity
IP64 rated ingress protection
Power
Input/Operating Voltage
7 to 36 VDC
Power Modes
Low voltage disconnect to prevent battery drain
Built-in protection against voltage transients including 5 VDC engine cranking and +200 VDC load dump
Ignition Sense with time delay shutdown
INPUT/OUTPUT
Configurable I/O (5 pins total)
  • 5 Digital Inputs: ON Voltage: 2.7 to 36 VDC
  • 1 Digital Open Collector Output > sinking 500 mA
  • 3 Analog Inputs: 0.5-36 VDC
  • Configurable Pull-ups for dry contact input
SERIAL
TCP/UDP PAD Mode
Modbus (ASCII, RTU, Variable)
PPP
DNP3 Interoperability
NETWORK AND ROUTING
Throughput
140 Mbps Firewall TCP throughput
Features
Network Address Translation (NAT) Reliable Static Route
Port Forwarding Dynamic DNS
Policy Routing Verizon PNTM
NEMO/DMNR IPV6 Gateway
VRRP
VPN
IPsec, GRE, and OpenVPN Client
Up to 5 concurrent tunnels
Split Tunnel
Dead Peer Detection (DPD)
ROUTER MANAGEMENT INTERFACES
Local web user interface
AT Command Line Interface (Telnet/SSH/Serial)
SNMP
SMS Commands
APPLICATION FRAMEWORK
ALEOS Application Framework (AAF)
LUA Scripting Language
EVENTS ENGINE
Custom event triggers and reports
Configurable interface, no programming
Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature and Voltage
Report Types: RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV)
Event Actions: Drive Relay Output
INDUSTRY CERTIFICATIONS
Safety
IECEE Certification Bodies Scheme (CB Scheme), UL60950
Vehicle Usage
E-Mark (UN ECE Regulation 10.04), ISO7637-2, SAE J1455 (Shock, Vibration, Electrical)
Environments
RoHS2, REACH, WEEE
Rail Usage
EN50155 (Rolling Stock)
AIRLINK COMPLETE (1 year included with ROUTER PURCHASE)
Support
24/7 technical support*
Hardware Warranty
1-year standard hardware warranty
Extended hardware warranty upto 5 years with current subscription**.
Device Management
AirLink Service Management (ALMS)*
Software Updates
Unrestricted critical firmware updates through at least December 31st, 2029
* With current AirLink Complete subscription
**Full warranty terms are available at here
AIRLINK Premium (Optional upgrade)
Includes all AIrLink Complete Features* and ADDs:
Advanced Mobility Reporting
Coverage and fleet reporting*
Advance Replacement
Same day shipping for in-warranty router replacements*
Tracker Widget
Near real-time view of your routers on a map widget
* With current AirLink Premium subscription
ACCESSORIES
In The Box
MP70, DC Power Cable and Quick Start Guide
Other Accessories (Sold Separately)
  • AC Adapter (2000579)
  • I/O Cable (6001004)
  • OBD-II Y Cable (6001204)
  • J1939 Y Cable (6001192)
  • 6-in-1 Shark Fin (6001197)
  • 6-in-1 Dome Antenna (6001121)
See website for more antenna options

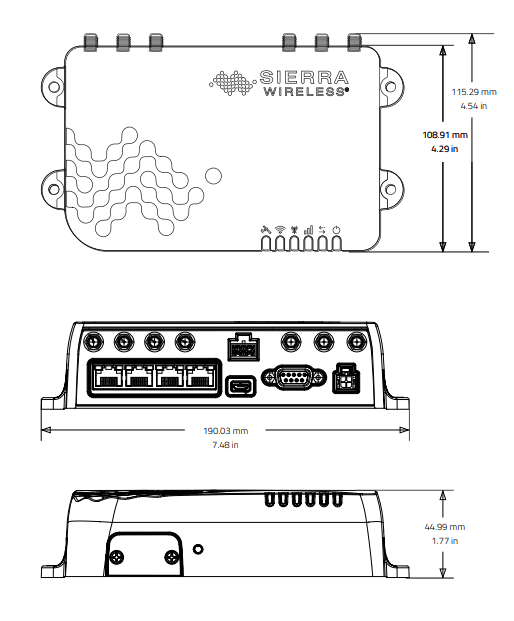

DIMENSIONS
190mm x 45mm x 105mm (112mm including connectors)
7.5in x 1.75 in x 4.1 in (4.4 in including connectors)
Weight
0.76kg / 1.68 lb
mp70_spec_image

*For carrier specific band support please refer to the hardware user guide.
