AirLink® LX40: LTE Router

The AirLink® LX40 is a compact LTE router offering “out-of-the box” LTE and Wi-Fi connectivity that is simple to install. The LX40 supports security, digital signage and IoT applications in fixed, protected environments.

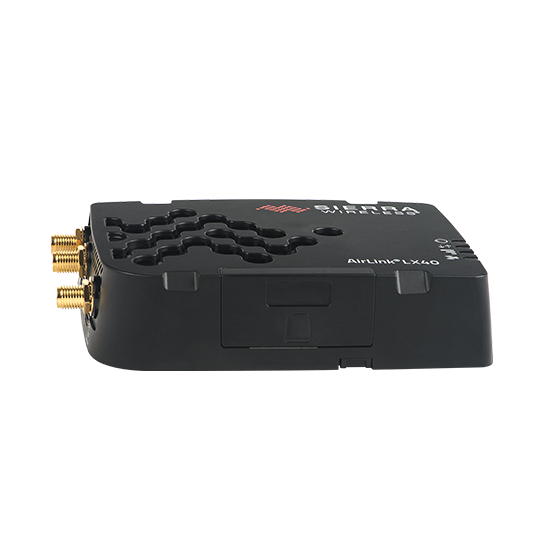

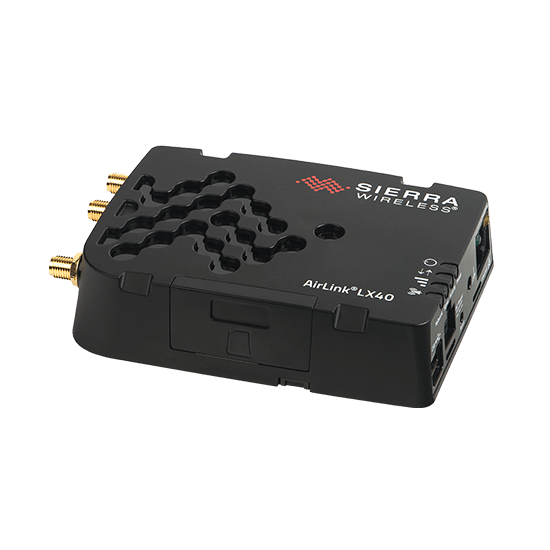

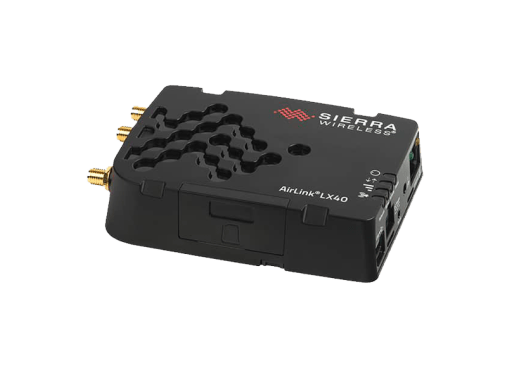

AirLink® LX40
Ultra Compact LTE Commercial Router for Security Cameras, Digital Signage, IoT, and Small Business

Out-of-the box connectivity

Out-of-the box connectivity delivers same day operations

Connect to a wide variety

Connect to a wide variety of devices from video to low-power IoT

Compact size

Compact size helps expand application deployment

Leverage the world of IoT

Leverage the world of IoT to drive new business opportunities

AirLink Complete

AirLink Complete is a subscription service that combines best-in-class device management software through AirLink Management Service (ALMS), industry-leading technical support and an extended warranty option. It delivers a cost-effective way to ensure your mission-critical infrastructure operates at peak efficiency. AirLink Complete is included free for 1 year with the purchase of a new LX40.

Device Management

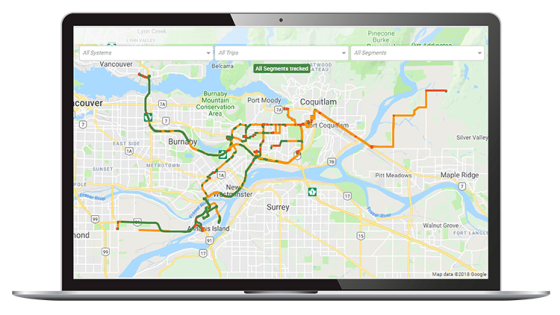

AirLink Management Service (ALMS) is a secure cloud-based device management solution that supports over-the-air registration, configuration and software updates. ALMS Advanced Reporting and Analytics (ALMS ARA) adds advanced historical reporting and deeper insights to data.

AirLink® LX40 – Router Specifications

Print Specs

	North America	EMEA	Australia & New Zealand

CELLULAR
Peak D/L	Up to 150 Mbps, Cat-4 (WP7610)	Up to 150 Mbps, Cat-4 (WP7607)	Up to 150 Mbps, Cat-4 (WP7609)
Peak U/L	Up to 50 Mbps	Up to 50 Mbps	Up to 50 Mbps

4G LTE
Frequency Bands	B1, B4, B5, B12, B13, B14, B17, B66	B1, B3, B7, B8, B20, B28	B1, B3, B5, B7, B8, B28

3G WCDMA/HSPA+
Frequency Bands	B2, B4, B5	B1, B8	B1, B5, B8

2G GSM/GPRS
Frequency Bands		900, 1800

Approvals
Regulatory	FCC, IC, PTCRB	GCF, CE	GCF, RCM
Carrier	AT&T, Verizon, T-Mobile

Part Numbers
Part Numbers	1104579, 1104573 (WiFi)	1104181, 1104182 (Wi-Fi)	1104183, 1104184 (Wi-Fi)

Host Interfaces

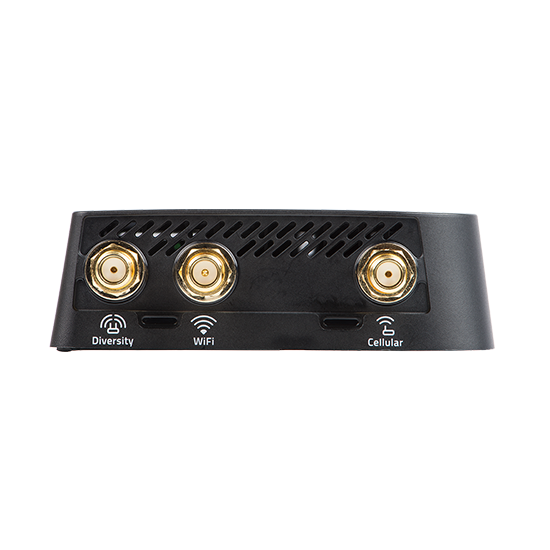

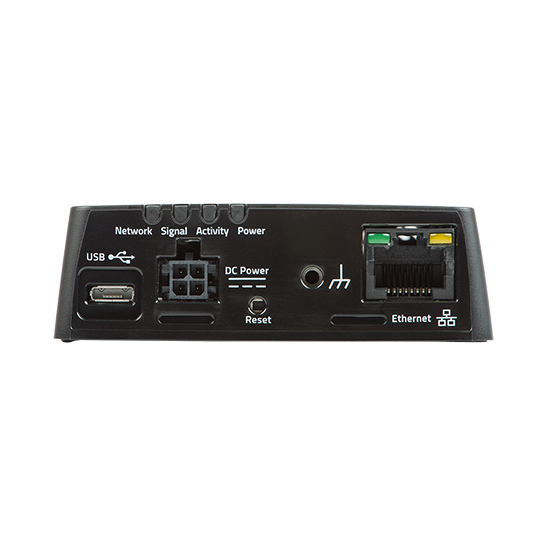

	1 Gigabit RJ-45 Ethernet Port (POE) USB 2.0 Micro-B Connector 2 SMA antenna connectors (cellular, diversity) 1 RP SMA antenna connector (Wi-Fi)

SECURITY
	Remote Authentication (LDAP, RADIUS, TACACS+) DMZ Inbound and Outbound Port filtering Inbound and Outbound Trusted IP MAC Address Filtering PCI compatible Secure Firmware Update

WI-FI (Optional)
	Dual Band 2.4/5GHz Wi-Fi 802.11 b/g/n/ac (Wave2 Client Mode) Support for 10 clients, WPA2 Enterprise Output power 16dBm per channel Access Point or Client Mode (Wi-Fi as WAN) Single SSID Support Captive Portal

LAN (ETHERNET/USB)
	DHCP Server IP Passthrough VLAN Host Interface Watchdog PPPoE

ENVIRONMENTAL
Operating Temperature	-20°C to +65°C / -4°F to +149°F (+60°C / +140°F when using PoE)
Storage Temperature	-40°C to +85°C / -40°F to +185°F
Humidity	90% RH @ 60°C
	Military Spec MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity IP21 rated ingress protection

Power
Input/Operating Voltage	7 to 36 VDC
Power Modes	Low voltage disconnect to prevent battery drain Built-in protection against voltage transients Power-over-Ethernet (PoE) powered device Ignition Sense with time delay shutdown

INPUT/OUTPUT
	Configurable I/O pin on power connector Digital Inputs: ON Voltage: 2.7 to 36 VDC Configurable Pull-ups for dry contact input Digital Open Collector Output > sinking 500 mA Analog Inputs: 0.5-36VDC (range selectable)

NETWORK AND ROUTING
	Network Address Translation (NAT) Reliable Static Route Port Forwarding Dynamic DNS Policy Routing Verizon PNTM NEMO/DMNR IPV6 Gateway VRRP

VPN
	IPsec, GRE, and OpenVPN Client Up to 5 concurrent tunnels Split Tunnel Dead Peer Detection (DPD)

ROUTER MANAGEMENT INTERFACES
	Local web user interface AT Command Line Interface (Telnet/SSH) SNMP SMS Commands

APPLICATION FRAMEWORK
	ALEOS Application Framework (AAF) LUA Scripting Language

EVENTS ENGINE
	Custom event triggers and reports Configurable interface, no programming
Event Types	Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature and Voltage
Report Types	RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV)
Event Actions	Drive Relay Output

INDUSTRY CERTIFICATIONS
Safety	IECEE Certification Bodies Scheme (CB Scheme), UL 60950
Vehicle Usage	E-Mark (UN ECE Regulation 10.04), ISO7637-2, SAE J1455 (Shock, Vibration, Electrical)
Environments	RoHS2, REACH, WEEE
Public Safety	FirstNet®

SUPPORT AND WARRANTY
	1 year standard warranty with up to 5 years extended warranty with current AirLink Complete subscription. Unrestricted critical firmware updates.

ACCESSORIES
In The Box	LX40, DC Power Cable and Quick Start Guide
Other Accessories (sold separately)	2000579 AC Adapter, 12VDC 6001221 DIN Rail Bracket 6001110 Cellular Paddle Antenna 6001111 Wi-Fi 2.4/5Hz Paddle Antenna For antenna options visit: sierrawireless.com/antennas

CONSTRUCTION
	Polycarbonate housings that meet MIL-810/IP21 environmental standards.

DIMENSIONS
	103 mm (111 mm including connectors) x 79 mm x 25 mm 4.1 in (4.4 in including connectors) x 3.1 in x 1.0 in Weight: 250g

*For carrier specific band support please refer to the hardware user guide.
