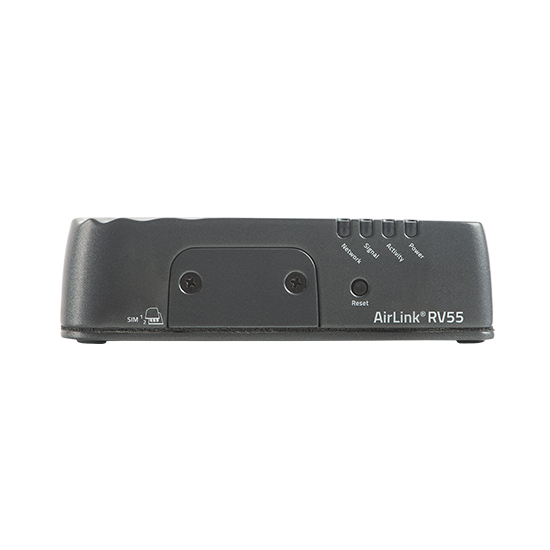

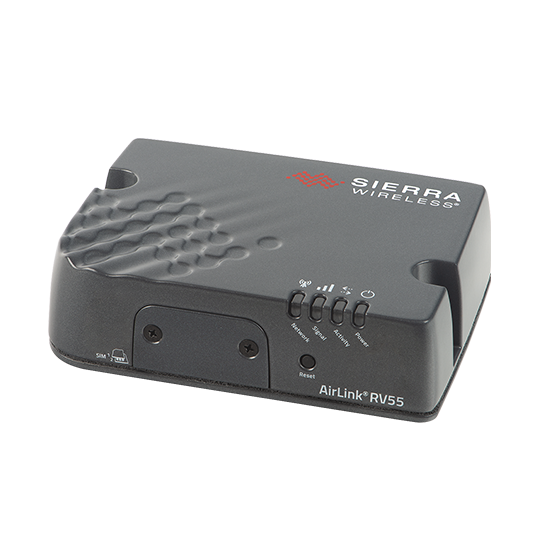

AirLink® RV55: Industrial LTE-A Pro Router

The AirLink® RV55 delivers LTE and Wi-Fi connectivity for vehicles and remote fixed assets operating in harsh environments. With ultra-low power consumption, the RV55 is ideal for solar/battery powered installations.

AirLink® RV55
Rugged LTE-A Pro router capable of 600Mbps download and 150 Mbps upload. Wi-Fi optional.

Use Cases

Ruggedized connectivity for fixed and mobile assets in:

Benefits

Increase Safety

Increase Safety for first responders and utility workers

Get up and running

Get up and running faster through simplified device connections

Obtain access

Obtain access to previously inaccessible equipment

Gain real-time remote

Gain real-time remote connectivity for SCADA, distribution and metering

Services & Support

AirLink Complete

AirLink Complete is a subscription service that combines best-in-class device management software through AirLink Management Service (ALMS), industry-leading technical support and an extended warranty option. It delivers a cost-effective way to ensure your mission-critical infrastructure operates at peak efficiency. AirLink Complete is included free for 1 year with the purchase of a new RV55.

Device Management

AirLink Management Service (ALMS) is a secure cloud-based device management solution that supports over-the-air registration, configuration and software updates. ALMS Advanced Reporting and Analytics (ALMS ARA) adds advanced historical reporting and deeper insights to data.

AirLink® RV55 – Router Specifications

Print Specs

	North America	EMEA	Global

CELLULAR
Peak D/L	RV55 LTE – Up to 150 Mbps, Cat 4 (WP7610 \| WP7607) RV55 LTE-A PRO – Up to 600 Mbps, Cat 12 (EM7511 \| EM7565)	RV55 LTE – Up to 150 Mbps, Cat 4 (WP7610 \| WP7607) RV55 LTE-A PRO – Up to 600 Mbps, Cat 12 (EM7511 \| EM7565)	RV55 LTE – Up to 150 Mbps, Cat 4 (WP7610 \| WP7607) RV55 LTE-A PRO – Up to 600 Mbps, Cat 12 (EM7511 \| EM7565)
Peak U/L	RV55 LTE – Up to 50 Mbps RV55 LTE-A PRO – Up to 150 Mbps	RV55 LTE – Up to 50 Mbps RV55 LTE-A PRO – Up to 150 Mbps	RV55 LTE – Up to 50 Mbps RV55 LTE-A PRO – Up to 150 Mbps

4G LTE
Frequency Bands	RV55 LTE – 1900(B2), AWS(B4), 850(B5), 700(B12), 700(B13), 700(B17), 1700(B66) RV55 LTE-A PRO – 2100(B1), 1900(B2),1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 1800(B9), 700(B12), 700(B13), 700(B14), 850(B18), 850(B19), 800(B20), 850(B26), 700(B29), 2300(B30), 1500(B32), TDD B41, TDD B42, TDD B43, TDD B46, CBRS B48,1700(B66)	RV55 LTE – 2100(B1), 1800(B3), 2600(B7), 900(B8), 800(B20), 700(B28)	RV55 LTE-A PRO – 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 1800(B9), 700(B12), 700(B13), 850(B18), 850(B19), 800(B20), 850(B26), 700(B28), 700(B29), 2300(B30), 1500(B32), TDD B41, TDD B42, TDD B43, TDD B46, CBRS B48, 1700(B66)

3G HSPA/HSPA+
Frequency Bands*	RV55 LTE – 1900(B2), AWS(B4), 850(B5) RV55 LTE-A PRO – 2100(B1), 1900(B2), AWS(B4), 850(B5), 800(B6), 900(B8), 1700(B9), 850(B19)	RV55 LTE – 2100(B1), 900(B8)	RV55 LTE-A PRO – 2100(B1), 1900(B2), AWS(B4), 850(B5), 800(B6), 900(B8), 1700(B9), 850(B19)

2G EDGE/GSM/GPRS
Frequency Bands		RV55 LTE – 900, 1800	RV55 LTE-A PRO – 850, 900, 1800, 1900

APPROVALS
Regulatory**	RV55 LTE – FCC, IC, PTCRB RV55 LTE-A PRO – FCC, IC, PTCRB	RV55 LTE – GCF, CE	RV55 LTE-A PRO – FCC, IC, PTCRB, GCF, CE, RCM, IFT, Anatel
Carrier**	55 LTE – Verizon, AT&T, T-Mobile RV55 LTE-A PRO – Verizon, AT&T/FirstNet, US Cellular, T-Mobile, Telus, Rogers, Bell, Southern Linc		RV55 LTE-A PRO – Verizon, AT&T, Telstra (Planned)

PART NUMBER
Part Number	RV55 LTE – 1104335 RV55 LTE-A PRO – 1104303, 1104302 (Wi-Fi), 1104302 (Wi-Fi)	RV55 LTE – 1104337	RV55 LTE-A PRO – 1104332, 1104331 (Wi-Fi), 1104331 (Wi-Fi)

*For carrier-specific band support please refer to the hardware user guide.
**All approvals are either granted or in progress. Call for the latest approval status.

HOST INTERFACES
	10/100/1000 Ethernet (RJ45) RS-232 serial port (DB-9) USB 2.0 Micro-B Connector 3 SMA antenna (cellular, diversity, GNSS) 2 RP-SMA antenna (1×1 Wi-Fi, Optional) Active GPS antenna support

SECURITY
	Remote Authentication (LDAP, RADIUS, TACACS+, DMZ) Inbound and Outbound Port filtering Inbound and Outbound Trusted IP MAC Address Filtering PCI compatible Secure Firmware Update

WI-FI (Optional)
	Dual Band 2.4/5GHz Wi-Fi Dual Radio, 802.11 b/g/n/ac (Wave2 Client Mode) Support for 10 clients, WPA2 Enterprise per radio Output power 16dBm Configurable as Dual Band Access Point (AP) or AP+Client Mode Single SSID Support per radio Captive Portal

SATELLITE NAVIGATION (GNSS)
	LTE-A Pro Variant: 30 Channel GPS and GLONASS Receiver (Tracking Sensitivity: -160dBm) LTE Variant: 48 Channel Dedicated GNSS Receiver (Tracking Sensitivity: -162 dBm) Accuracy: <2 m (50%), <5 m (90%), <0.2 m/s Acquisition Time: 1s Hot Start Reports: NMEA 0183 V3.0, TAIP, RAP, XORA Multiple Redundant Servers Reliable Store and Forward

ENVIRONMENTAL
Operating Temperature	-40°C to +70°C / -40°F to +158°F
Operating Temperature (Wi-Fi variant)	-30°C to +70°C / -22°F to +158°F
Storage Temperature	-40°C to +85°C / -40°F to +185°F
Humidity	95% RH @ 60°C
	Military Spec MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity IP64 rated ingress protection

POWER
Input/Operating Voltage	Input Voltage: 7 to 36 VDC Configurable I/O pin on power connector Digital Input ON Voltage: 2.7 to 36 VDC Configurable Pull-up for dry contact input Digital Open Collector Output > sinking 500 mA Analog Input: 0.5-36 VDC
Power Modes	Idle Power: 900mW (75 mA @ 12VDC) Standby Mode Power: 53 mW (4.4 mA @ 12 VDC) triggered on low voltage, I/O or periodic timer Low voltage disconnect to prevent battery drain Built-in protection against voltage transients including 5 VDC engine cranking and +200 VDC load dump Ignition Sense with time delay shutdown Configurable features and ports to optimize power consumption

NETWORK AND ROUTING
	Network Address Translation (NAT) Reliable Static Route Port Forwarding Dynamic DNS Policy Routing Verizon PNTM NEMO/DMNR IPV6 Gateway VRRP

VPN**
	IPsec, GRE, and OpenVPN Client Up to 5 concurrent tunnels Split Tunnel Dead Peer Detection (DPD) FIPS 140-2 compatible

INDUSTRY CERTIFICATION
Safety	IECEE Certification Bodies Scheme (CB Scheme), UL 60950****
Vehicle Usage	E-Mark (UN ECE Regulation 10.04)
Environmental	RoHS, REACH, WEEE Hazardous Environments: Class 1 Div 2– Ambient temperatures of -30°C to +60°C
Rail Usage	EN50155, ISO7637-2, SAE J1455 (Shock & Vibration)

SUPPORT AND WARRANTY
	1 year standard warranty with up to 5 years extended warranty with current AirLink Complete subscription. Unrestricted critical firmware updates.

LAN (ETHERNET/USB)
	DHCP Server Host Interface Watchdog IP Passthrough PPPoE VLAN

SERIAL
	TCP/U DP PAD Mode Modbus (ASCII, RTU, Variable) PPP DNP3 Interoperability Dual Serial option (with an accessory)

APPLICATION FRAMEWORK
	ALEOS Application Framework (AAF) LUA Scripting Language

NETWORK MANAGEMENT
	Secure mobile network & asset management application available in the cloud or licensed platform in the enterprise data center Fleet wide firmware upgrade delivery Router configuration and template management Router staging over the air and local Ethernet connection Over-the-air software and radio module firmware updates Device Configuration Templates Configurable monitoring and alerting Remote provisioning and airtime activation (where applicable)

NETWORK MANAGEMENT

Secure mobile network & asset management application available in the cloud or licensed platform in the enterprise data center
Fleet wide firmware upgrade delivery
Router configuration and template management
Router staging over the air and local Ethernet connection
Over-the-air software and radio module firmware updates
Device Configuration Templates
Configurable monitoring and alerting
Remote provisioning and airtime activation (where applicable)

ROUTER MANAGEMENT
	ALMS Local web user interface AT Command Line Interface (Telnet/SSH/Serial) SMS Commands SNMP

EVENTS ENGINE
	Custom event triggers and reports Configurable interface, no programming
Event Types	Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature and Voltage
Report Types	RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV)
Event Actions	Drive Relay Output

Accessories
In The Box	RV55, DC Power Cable, and Quick Start Guide
Other Accessories (Sold Separately)	2000579 AC Adapter, 12VDC 6000659 DIN Rail Bracket For Antenna options visit: sierrawireless.com/antennas

DIMENSIONS
AirLink RV55 – Main Body	119 mm x 33 mm x 85 mm (102 mm including wi-fi connectors) 4.69 in x 1.34 in x 3.35 in (3.70 in including connectors) Weight: 320 g

*For carrier-specific band support please refer to the hardware user guide
**All approvals are either granted or in progress. Call for the latest approval status
*** IPsec, GRE and OpenVPN Client are not available in the member states of the EAEU
**** Ambient temperatures of -30C to +60C
