Benefits

Connect to devices

Connect to devices in remote locations and harsh environments

Lower connectivity costs

Lower connectivity costs compared to fiber, landlines or private network

Deploy in off-grid locations

Deploy in off-grid locations using battery or solar power

Maximize ROI and longevity

Maximize ROI and longevity of remotely deployed equipment

Services & Support

AirLink Complete

AirLink Complete is a subscription service that combines best-in-class device management software through AirLink Management Service (ALMS), industry-leading technical support and an extended warranty option. It delivers a cost-effective way to ensure your mission-critical infrastructure operates at peak efficiency. AirLink Complete is included free for 1 year with the purchase of a new RV50X.
AirLink Complete Diagram
Advanced Mobility Reporting AMR-laptop

AirLink Premium Upgrade

Ideal for organizations managing mission-critical vehicle fleets, this service upgrade encompasses all the benefits of AirLink Complete, enhanced with:
  • Advanced Mobility Reporting: Offers comprehensive coverage and fleet reporting to monitor your network and vehicles.
  • Advance Replacement: Provides same-day shipping for in-warranty router replacements, minimizing downtime, spare inventory and keeping your operations running smoothly.

AirLink Connection Manager

  • VPN appliance built from the ground up for AirLink routers & gateways
  • Simplify deployment and management of your VPN solution, extending the enterprise to the network edge for fixed and mobile endpoints
  • Carrier agnostic – ACM doesn’t require fixed and/or public IP
  • Compatible with FIPS 140-2, and always-on VPN capability
ACM-Icon

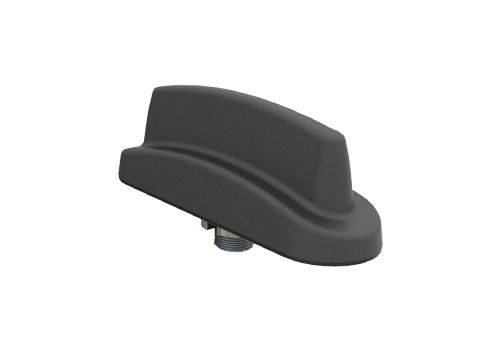

Antennas

Accelerate your deployment with always-on, end-to-end connectivity provided by our portfolio of high performance antennas.

Antennas-Panel-500x350

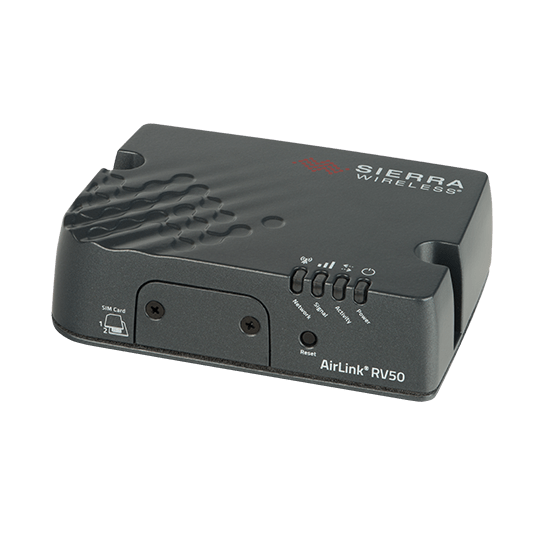

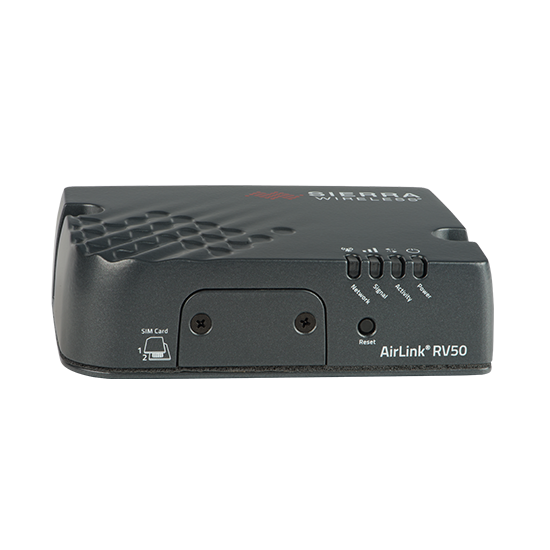

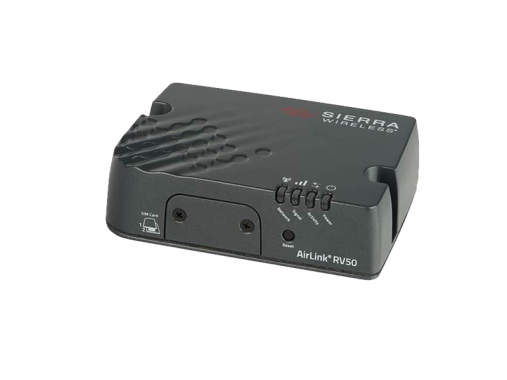

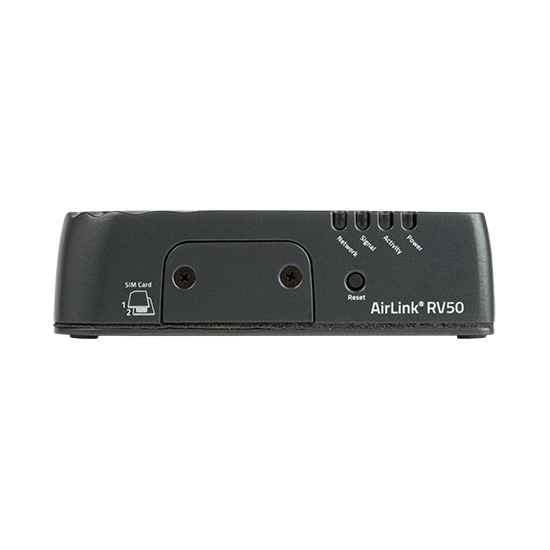

AirLink® RV50X – Router Specifications


North America & EMEA​
Asia Pacific​
CELLULAR
Peak D/L
Cat 6
Cat 6
Peak D/L
Up to 300 Mbps
Up to 300 Mbps
Peak U/L
Up to 50 Mbps
Up to 50 Mbps
4G LTE
Frequency Bands*
2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 700(B12), 700(B13), 800(B20), 1900(B25), 850(B26), 700(B29), TDD B41
2100(B1), 1800(B3), 850(B5), 2600(B7), 900(B8), 850(B18), 850(B19), 1500(B21), 700(B28), TDD 38, TDD 39, TDD 40, TDD 41
3G WCDMA/HSPA+
Frequency Bands*
2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 900(B8)
2100(B1), 850(B5), 800(B6), 900(B8), 1700(B9), 850(B19)
3G TD-SCDMA
Frequency Bands*
B39
Approvals
Regulatory
FCC, IC, PTCRB, R&TTE, GCF, CE
RCM, JRF/JPA, Anatel
Carrier
Verizon, AT&T, T-Mobile, Southern Linc, US Cellular, Rogers, TELUS, Bell, Anterix
Telstra
Part Numbers
Part Numbers
1103052
1103045
1103973 (China)

*For carrier specific band support please refer to the hardware user guide

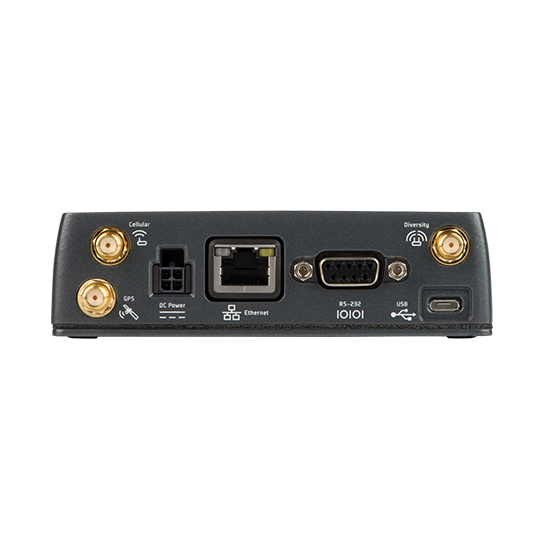

Host Interfaces
10/100/1000 Ethernet (RJ45)
RS-232 serial port (DB-9)
USB 2.0 Micro-B Connector
3 SMA antenna connectors (primary, diversity, GPS)
Active GPS antenna support
SECURITY
Remote Authentication (LDAP, RADIUS, TACACS+)
DMZ
Inbound and Outbound Port filtering
Inbound and Outbound Trusted IP
MAC Address Filtering
PCI compatible
SATELLITE NAVIGATION (GNSS)
12 Channel GPS and GLONASS Receiver
Acquisition Time: 1 s Hot Start
Accuracy: <2 m (50%), <5 m (90%)
Tracking Sensitivity: -145 dBm
Reports: NMEA 0183 V3.0, TAIP, RAP, XORA
Multiple Redundant Servers
Reliable Store and Forward
ENVIRONMENTAL
Operating Temperature
-40°C to +70°C / -40°F to +158°F
Storage Temperature
-40°C to +85°C / -40°F to +185°F
Humidity
90% RH @ 60°C
Military Spec MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity
IP64 rated ingress protection
POWER
Input/Operating Voltage
Input Voltage: 7 to 36 VDC
Configurable I/O pin on power connector
  • Digital Input ON Voltage: 2.7 to 36 VDC
  • Configurable Pull-up for dry contact input
  • Digital Open Collector Output > sinking 500 mA
  • Analog Input: 0.5-36 VDC
Power modes
LTE Idle Power: 900mW (75 mA @ 12VDC)
Standby Mode Power: 53 mW (4.4 mA @ 12 VDC) triggered on low voltage, I/O or periodic timer
Low voltage disconnect to prevent battery drain
Built-in protection against voltage transients including 5 VDC engine cranking and +200 VDC load dump
Ignition Sense with time delay shutdown
Configurable features and ports to optimize power consumption
NETWORK AND ROUTING
Network Address Translation (NAT)
Port Forwarding
Host Port Routing
NEMO/DMNR
VRRP
Reliable Static Route
Dynamic DNS
Policy Routing
Verizon ANTM
IPv6 Gateway
VPN***
IPsec, GRE, and OpenVPN Client
Up to 5 concurrent tunnels
Split Tunnel
Dead Peer Detection (DPD)
Multiple Subnets
INDUSTRY CERTIFICATIONS
Safety
IECEE Certification Bodies Scheme (CB Scheme), UL 60950
Vehicle Usage
E-Mark (UN ECE Regulation 10.04), ISO7637-2, SAE J1455 (Shock & Vibration)
Environmental
RoHS, REACH, WEEE
Hazardous Environments: Class 1 Div 2
SUPPORT AND WARRANTY
1 year standard warranty with up to 5 years extended warranty with current AirLink Complete subscription. Unrestricted critical firmware updates.
LAN (ETHERNET/USB)
DNS, DNS Proxy
DHCP Server
IP Passthrough
VLAN
Host Interface Watchdog
PPPoE
SERIAL
TCP/U DP PAD Mode
Modbus (ASCII, RTU, Variable)
PPP
DNP3 Interoperability
APPLICATION FRAMEWORK
ALEOS Application Framework (AAF)
LUA Scripting Language
Eclipse-based IDE
Integrated with AirVantage®
Dual-Core Processing
NETWORK MANAGEMENT
Secure network management applications available in the cloud
or licensed platform in the enterprise data center
Fleet wide firmware upgrade delivery
Router configuration and template management
Router staging over the air and local Ethernet connection
Over-the-air software and radio module firmware updates
Device Configuration Templates
Configurable monitoring and alerting
Remote provisioning and airtime activation (where applicable)
ROUTER MANAGEMENT
ALMS
Local web user interface
AT Command Line Interface (Telnet/SSH/Serial)
SMS Commands
SNMP
EVENTS ENGINE
Custom event triggers and reports
Configurable interface, no programming
Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature and Voltage
Report Types: RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV)
Event Actions: Drive Relay Output
ACCESSORIES
In The Box
RV50X, DC Power Cable and Quick Start Guide
Other Accessories (Sold Separately)
  • 2000579 AC Adapter, 12VDC
  • 6000659 DIN Rail Bracket
For antenna options visit: sierrawireless.com/antennas

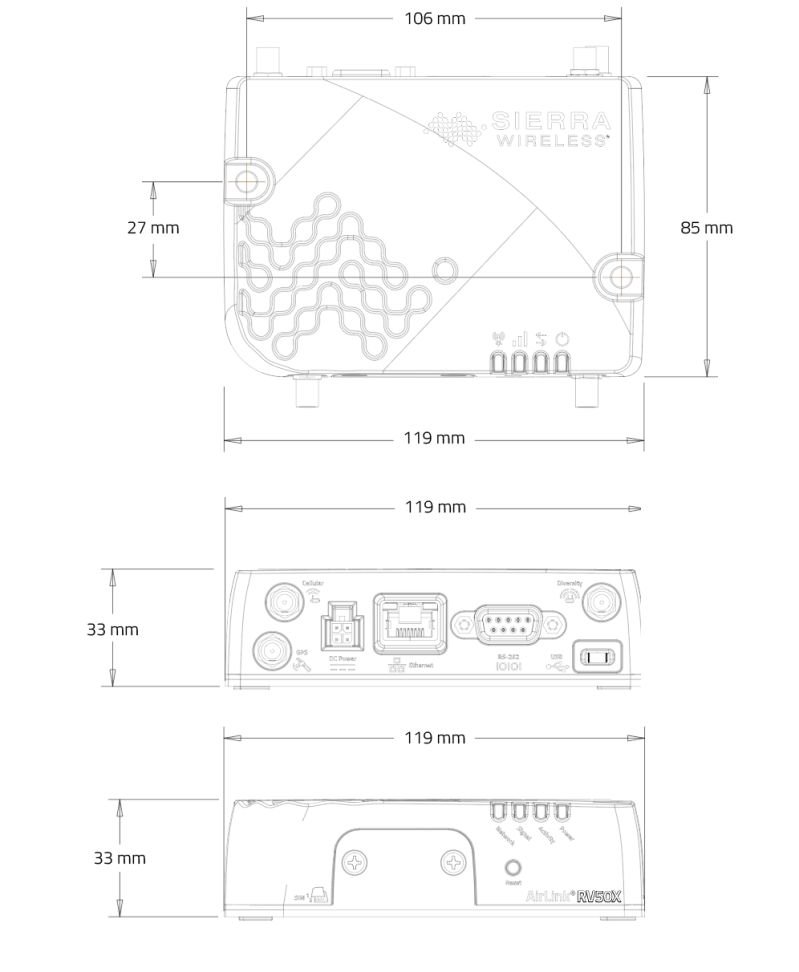

DIMENSIONS
AirLink RV50X – Main Body
119 mm x 34 mm x 85 mm (94 mm including connectors)
4.69 in x 1.34 in x 3.35 in (3.70 in including connectors)
RV50Xspec

*For carrier specific band support please refer to the hardware user guide.
