Benefits

Real-time connectivity

Real-time connectivity with unmatched uplink and downlink speeds using Data Path Accelerated 5G, Wi-Fi 6 and 5Gbps Ethernet technology

“Always-on” connectivity

“Always-on” connectivity using available dual cellular and dual Wi-Fi radios, and automatic failover using AirLink Cognitive Wireless

Simplified set up and usability

Simplified set up and usability with new AirLink OS and upgraded AirLink Management Service (ALMS)

AirLink Out-of-Band Management

AirLink Out-of-Band Management capability provides zero-touch set up and reduced service calls

Services & Support

AirLink Premium

Ensures your AirLink XR90 hardware operates at peak efficiency and is always accessible. With device management and robust mobility reporting combined with our best-in-class management service and technical support, this offering includes:

  • AirLink Management Service (ALMS) network management
  • Advanced Mobility Reporting (AMR)
  • 24/7/365 Tier 1 technical support from wireless experts via phone or online access
  • Extended hardware warranty – up to 5 years

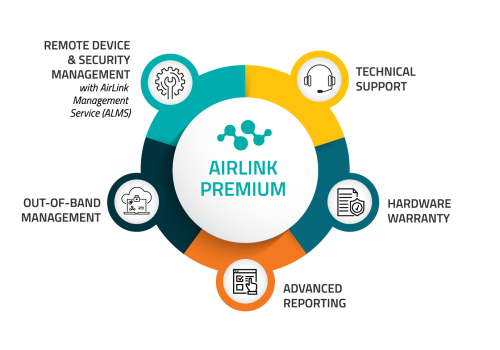

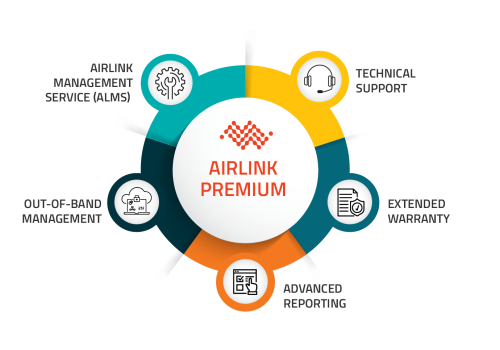

AirLink Premium Diagram
ACM-Icon-02

AirLink Connection Manager

  • VPN appliance built from the ground up for AirLink routers & gateways
  • Simplify deployment and management of your VPN solution, extending the enterprise to the network edge for fixed and mobile endpoints
  • Carrier agnostic – ACM doesn’t require fixed and/or public IP
  • Compatible with FIPS 140-2, and always-on VPN capability

Antennas

Accelerate your deployment with always-on, end-to-end connectivity provided by our portfolio of high performance antennas.

Antennas-500x350

AirLink® XR90 – Router Specifications

KEY FEATURES
Cellular Radios
Single & Dual 5G
LPWA for ALMS Out of Band Management
Wi-Fi
Dual 4×4 MU MIMO Wi-Fi 6
Ethernet
Single 5G: 4x Gigabit, 1x 5 Gigabit Ethernet Port
Dual 5G: 5x Gigabit, 1x 5 Gigabit Ethernet Port
Serial
Single/Dual RS-232 (DB9) with optional cables
GNSS
48 Channel GNSS with Dead Reckoning
CAN
CAN bus/OBD-II (J1979)/J1939)
I/O
5 GPIO
USB
USB 3.1 USB-C
Bluetooth
Selectable Bluetooth 4.x Classic or Bluetooth LE (Future)
IP Rating
Sealed Aluminum Housing (IP64 Rated)
Services
AirLink Premium
Operating System
AirLink OS
Management System
ALMS
Region
North America
EMEA & APAC
CELLULAR
Variant
North America
EMEA, APAC
Technology
Single/Dual 5G
Single/Dual 5G
Peak Downlink (Theoretical)
4.14 Gbps
4.14 Gbps
Peak Uplink (Theoretical)
660 Mbps
660 Mbps
LTE Category
5G
5G
Region
NAM
EMEA, APAC
Radio
EM9190
EM9190
MIMO
Single/Dual 4×4
Single/Dual 4×4
RF Connectors
FAKRA
FAKRA
SIM
Dual SIM (Mini-2FF)
Dual SIM (Mini-2FF)
FREQUENCY BANDS
5G Bands
n1, n2, n3, n5, n28, n41, n66, n71, n77, n78, n79 (NSA & SA Support)
Future Variant adds support for: n7, n8, n12, n20, n25, n38, n40, n48 (NSA & SA Support)
n1, n2, n3, n5, n28, n41, n66, n71, n77, n78, n79 (NSA & SA Support)
Future Variant adds support for: n7, n8, n12, n20, n25, n38, n40, n48 (NSA & SA Support)
4G LTE Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71
3G HSPA+ Bands
B1, B2, B3, B4, B5, B6, B8, B9, B19
B1, B2, B3, B4, B5, B6, B8, B9, B19
2G GPRS Bands
LPWA
B1, B2, B3, B4, B5, B8, B9, B10, B12, B13, B17, B18, B19, B20, B25, B26, B27, B28, B66
B1, B2, B3, B4, B5, B8, B9, B10, B12, B13, B17, B18, B19, B20, B25, B26, B27, B28, B66
WIRELESS CERTIFICATION
Regulatory
FCC, IC/ISED, PTCRB
GCF, CE, RED, RCM, ESN
Carrier
AT&T, FirstNet® 4G, T-Mobile, Verizon, Rogers, Telus, Bell, CBRS
BT
Public Safety
FirstNet® 4G
ESN
Part Numbers
1104785 Single 5G
1104786 Dual 5G
1104757 XP 5G Cartridge (Optional)
1104722 Single 5G
1104723 Dual 5G
1104757 XP 5G Cartridge (Optional)
WI-FI (OPTIONAL)
Wi-Fi Standard
Wi-Fi 6 802.11ax
Access Point
Dual
Client (Depot/WAN)
Yes
Client & AP
Yes
Peak Throughput (Theoretical)
2400 Mbps
MIMO
Dual 4×4
Security
WPA2/3 Enterprise
Clients
128 per radio
SSID
4 per radio
Output Power
23.3 dBm per chain
Frequency
2.4/5 GHz
RF Connectors
FAKRA (Beige)
ENVIRONMENTAL
Operating Temperature
-30°C to +70°C / -22°F to +158°F
Storage Temperature
-40°C to +85°C / -40°F to +185°F
Humidity
95% RH @ 60°C
Military Specification
MIL-STD-810G (Shock, Vibration, Thermal Shock, Humidity)
IP Rating
IP64
INDUSTRY CERTIFICATIONS
Safety
IECEE Certification Bodies Scheme (CB Scheme), UL 60950
Vehicle Usage
E-Mark (72/245/EEC, 2009/19/EC), ISO7637- 2, SAE J1455 (Shock & Vibration, Electrical)
Environmental Directives
RoHS2, REACH, WEEE, Prop 65
Hazardous Environments
Class 1 Div 2 – Ambient temperatures of -30°C to +60°C
Rail Usage
EN50155/EN45545 (Rolling Stock)
POWER
Input Voltage
7 to 36 VDC
Power Consumption
Dual 5G Peak: 68W (5.7A @12V)
Standby 55mW: (4.5mA@12V)
Power Modes
Built-in protection against voltage transients including 5 VDC engine cranking and +200 VDC load dump
Ignition Sense with time delay shutdown
SECURITY
AAA
802.1x /Radius authentication with Wi-Fi and Ethernet
Firewall
Stateful firewall with port forwarding, DMZ
WLAN Encryption
WPA2/WPA3 Personal/Enterprise FIPS 140-2
Firmware Update
Secure Firmware Update
NETWORK AND ROUTING
Sierra Cognitive Wireless
IPv4 and IPv6 Routing
Network Address Translation (NAT)
Port Forwarding
DHCP Server
IP Passthrough
LAN Segmentation
IPv4 Passthrough and IPv6 Prefix Extension
WAN/LAN Connection Policy Management
Policy-Based Routing
Configurable MTU size
Static Routing
WAN Ethernet
QoS
Application/Traffic Priority Queuing
WAN Monitors
Connection Failure Recovery
LAN (ETHERNET/USB)
USB to Ethernet
VPN
Integrated with ACM VPN Server
IPsec protocol with IKEv1/IKEv2
FIPS 140-2 Level 1 compliant
Encryption
AES128/AES192/AES256
Hashing
SHA256/SHA384/SHA512
Key Exchange
DHGroup14/15/16/17/18/19/20/21
LAN to LAN and Host to LAN
Up to 10 concurrent tunnels per link
MOBIKE protocol
IP compression
Full/Split Tunnel
Dead Peer Detection (DPD)
ROUTER MANAGEMENT INTERFACES
ALMS
Local web user interface
REST API (Beta)
EDGE COMPUTING
Support for Edge Compute Containerized Applications (Beta)
RAM1,2
200 MB
Storage (Flash)1
750 MB
CPU
Quad Core ARMv8 64 bit
1 Approximation available to containers (not device total)
2 Depends on other enabled features
AIRLINK SERVICES
Services
AirLink Premium
Support
24/7
Warranty
1 year standard warranty with up to 5 years extended warranty with current AirLink Premium subscription
Device Management
ALMS with Advanced Mobility Reporting
Software Updates
Unrestricted critical firmware updates
RELIABILITY
MTBF
Single 5G: 19.0 years
Using Telcordia SR-332 Issue 3 Method 1
ACCESSORIES
In The Box
XR90, DC Power cable, LPWA Antenna, Quick Start Guide, AirLink Premium Leaflet
Other Accessories (sold separately)
6001004 XR80/90/MP/LX I/O Cable
6001192 XR80/90/MP70 J1939 Y Cable
6001204 XR80/90/MP70 OBD-II Y Cable
6001350 XR80/90 Mounting Bracket
6001372 XR80/90 AC Adaptor, 24 VDC
6001406 XR80/90 DC Power Cable
6001409 XR80/90 RJ45 to Dual DB9
6001410 XR80/90 RJ45 to Single DB9
6001433 XR80/90 DIN Rail Mounting Bracket
6001440 XR80/90 FAKRA Replacement Kit (8 Pieces)
6001456 XR80/90 to MG90 Mounting Bracket
1104757 XR80/90 XP-5G XR-Cartridge Global & NAM
For Antenna options visit: here

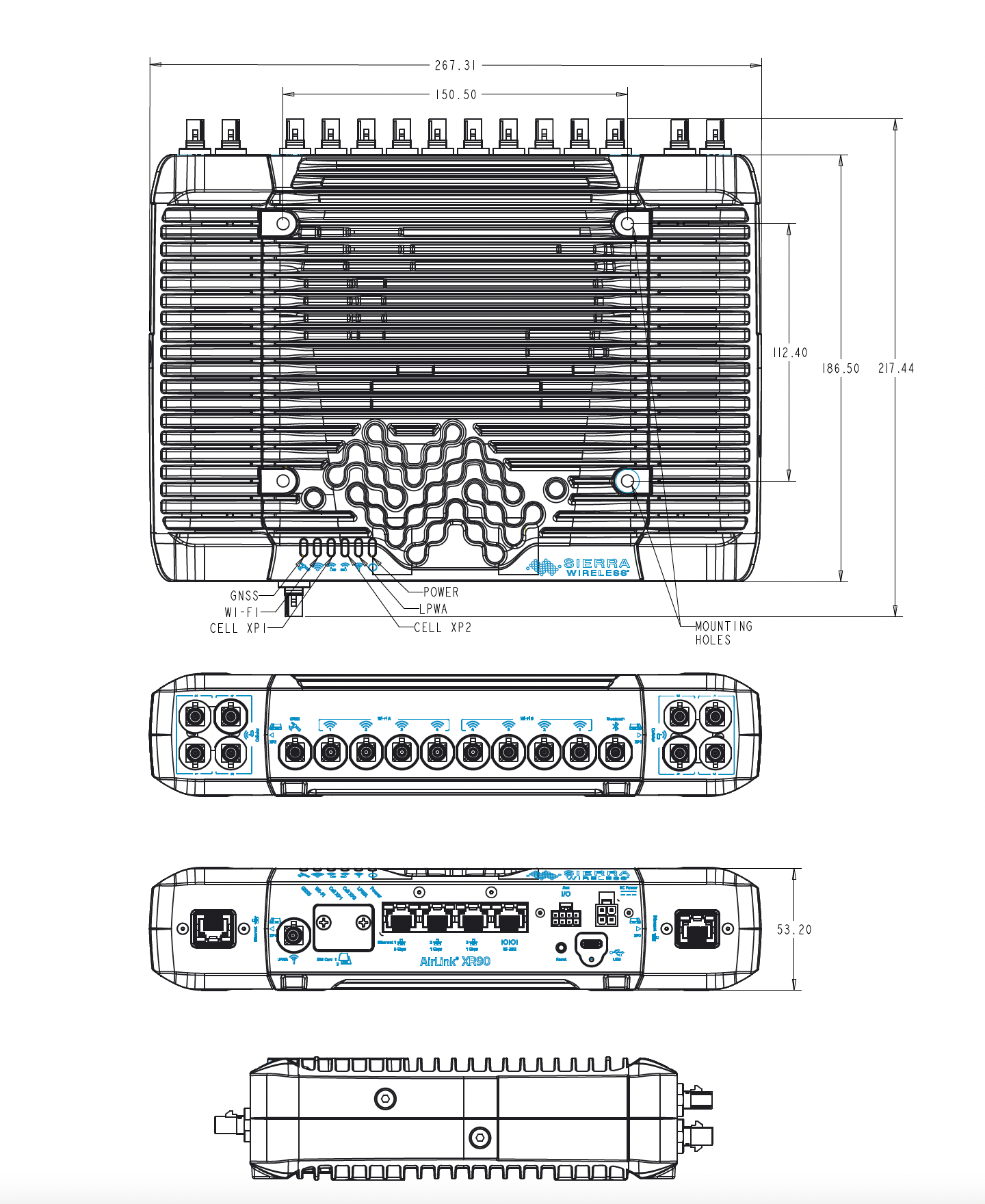

DIMENSIONS
Size
Base: 220mm x 170mm x 53mm
Single XP: 220mm x 220mm x 53mm
Dual XP: 268mm x 220mm x 53mm
Weight
Base: 2.06 Kg
Single XP: 2.64 Kg
Dual XP: 3.22 Kg

*For carrier specific band support please refer to the hardware user guide.
