FX86E 5G RedCap Modem

The FX86E delivers future-proof industrial-grade 5G RedCap connectivity for your connected machines and equipment without integration complexity. This pre-certified, cost-optimized compact 5G RedCap modem provides instant plug-and-play connectivity across 5G RedCap and 4G LTE public and private cellular networks—eliminating months of development time and certification costs. Its rugged, compact housing with MIL-STD-810H military-grade design, IP30 protection, E-Mark certification and low power consumption makes it ideal for connecting industrial equipment, heavy duty vehicles and solar/battery-powered applications. Semtech’s proven wireless technology and 30+ years of field-proven experience deliver reliable performance you can trust. Simply power up, connect, and get to market faster with trusted, future-ready 5G RedCap connectivity that’s ready right out of the box.

Download Datasheet

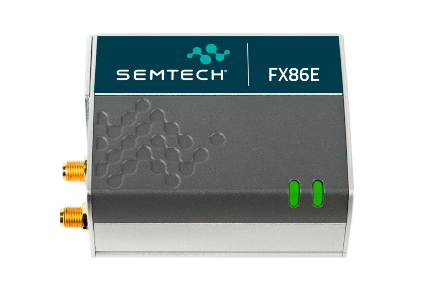

FX86E 5G RedCap Modem

Benefits

Future-Ready

The FX86E gives you the best of both worlds: 5G RedCap (3GPP R17) for future ready deployments and LTE support for today's global 4G infrastructure. All in a single SKU with worldwide band support.

Pre-Certified

Pre-certified on major carriers and regulatory standards worldwide. Connect your existing and new equipment out-of-the-box—no months of testing, no certification investment required.

Instant Connection

With AutoConnect, simply power up the modem and you're connected. AutoSim intelligently selects optimal carriers based on your nano-SIM. This plug-and-play approach is ideal for OEMs who want industrial-grade connectivity without the complexity and cost of module integration.

Industrial and Vehicle Grade

Rugged, compact housing with MIL-STD-810H military grade design, IP30 protection, E-Mark, SAE J1455 certifications and CB safety in IEC62368-1—suited for industrial equipment and heavy-duty vehicles. ​

OEM-Benefits image

Private Networks

Deploy on public cellular or your own private network. CBRS and Anterix B106 support gives industrial organizations complete flexibility for secure, dedicated connectivity.

Secure

End-to-end security with authentication, network firewall, secure boot, and credential storage. Third-party FOTA via secure HTTPS—your cloud, your control.

Easy Management

OpenWRT web UI interface provides intuitive, browser-based setup and control for seamless device configuration and network management.

Trusted Reliability

Powered by Semtech's EM8695 module backed with 30+ years of wireless expertise. Proven technology from a supplier who understands industrial connectivity inside out.​

Specifications

View Specs
AIR INTERFACE
Air Interface
5G RedCap (Sub-6 Ghz) & LTE Cat-4a
FREQUENCY BANDS
5G RedCap
5G Sub-6 Ghz (FR1 1CC): n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n66, n70, n71, n77, n78, n79
4G LTE
LTE (Cat-4 DL / Cat-3 UL): B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B30, B34, B38, B39, B40, B41, B42, B43, B48, B66, B70, B71, B106
APPROVALS
Regulatory
FCC, PTCRB, IC, GCF, RED, RCM (Planned)
Telecom & Carrier
AT&T, Verizon, T-Mobile
Planned : Telstra, DoCoMo, SoftBank, KDDI, Anterix
POWER VOLTAGE
Power Voltage
DC 4.75V to 32V
INTERFACES
Ethernet
10/100 BASE-T RJ45
USB
USB 2.0 Micro-USB
LEDs
1 signal LED, 1 user LED
SIM interface
Nano SIM (4FF)
Embedded SIM
No
Cellular Antenna
5G/4G Adhesive Mount Puck Antenna – Optional
MOUNTING OPTIONS
Mounting Options
Bracket for screw/wall and DIN rail mounting
CLOUD SERVICES
Cloud Services
Third-party FOTA via secure HTTPS
DIMENSIONS
Dimensions
82x60x32 mm including connectors
Weight
158g
ENVIRONMENTAL
Operational Temperature
-30° C to +75° C – (MIL-STD-810H, test methods 501.7, 502.7)
Humidity
95% relative humidity over a temperature range of +20°C to +60°C
MIL-STD-810H (test methods 507.7)
IP Rating
IP30
Vibration and Shock
MIL-STD-810H (test methods 503.7, 514.8 and 516.8)
SAEJ1455 (Sec 4.10.4.2 and 4.11.3.4)
Vehicles
E-Mark UN ECE Regulation No.10 Rev 7, CB IEC62368-1 andUL Listed SAEJ1455 (Sec 4.13.1, 4.13.2)
ESD
8KV contact discharge, 15KV air discharge
HAZARDOUS LOCATIONS
Hazardous Locations
TBC
