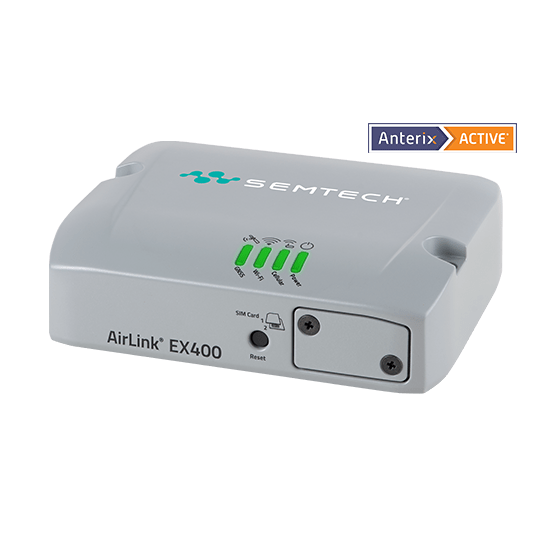

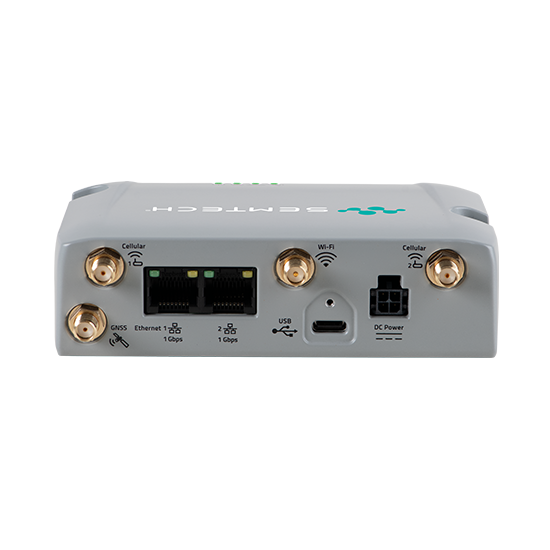

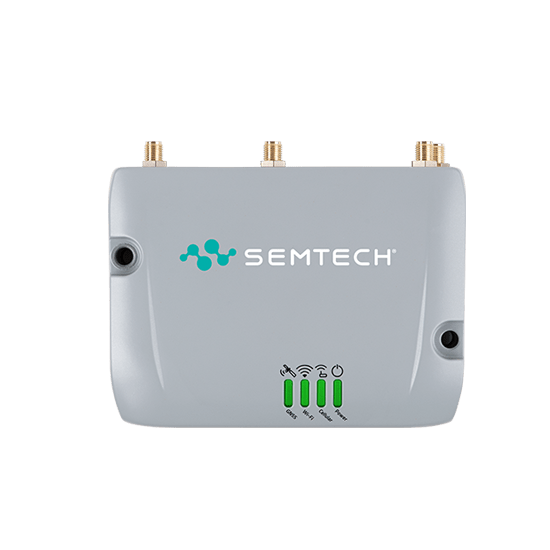

AirLink® EX400
5G RedCap Router

Right-Sized 5G RedCap Connectivity Engineered for Commercial IoT

The AirLink EX400 reliably connects IoT assets across retail, manufacturing, and agricultural operations—delivering right-sized performance and 5G longevity without the complexity and premium costs of full-scale 5G solutions. Optimized throughput and semi-rugged design meet commercial IoT requirements, while full 5G RedCap and LTE support protects connectivity investments.

Built on Semtech’s 30+ years of field-proven cellular expertise with defense-in-depth security and cloud management that simplifies operations across distributed locations.

5G RedCap + LTE Cat-4
1×1 Wi-Fi 6 (Optional)
Dual Ethernet (1 Gbps)

Dual-Band GNSS
IP30 Rated
Powered by AirLink OS
and AirLink Complete

Use Cases

The AirLink EX400 delivers optimized 5G RedCap performance and 5G longevity for distributed IoT deployments.

Benefits

Right-Sized 5G

5G RedCap delivers optimal throughput for commercial and industrial IoT - without paying premium costs for multi-gigabit speeds you'll never use.

Flexible Connectivity

Dual Gigabit Ethernet, edge computing, optional Wi-Fi 6, low power consumption and compact form factor enable versatile installations across stores, buildings, manufacturing sites and farms - with consistent performance.

Today Ready Tomorrow Proof

Flexible connectivity that works with your network reality – LTE and 5G RedCap - backed by future-proof technology throughout, protecting your investment for the next decade.

Proven Excellence

Deploy with confidence using field-proven technology, secure remote management, and comprehensive support designed to simplify operations across distributed locations.

Services & Support

AirLink Complete

Maximize your router investment with AirLink Complete — a comprehensive service package designed to empower you with the tools and support necessary to secure, optimize and effortlessly scale your router deployments.

AirLink Complete subscriptions include*:

AirLink Management Service (ALMS) for remote device
and security management
Direct access to expert technical support
Extended hardware warranty**

*With active subscription. 1-year subscription included with the router purchase.

**Up to 5 years maximum.

AirLink Premium Upgrade

Ideal for organizations managing mission-critical vehicle fleets, this service upgrade encompasses all the benefits of AirLink Complete, enhanced with:

Advanced Mobility Reporting: Offers comprehensive coverage and fleet reporting to monitor your network and vehicles.
Advance Replacement: Provides same-day shipping for in-warranty router replacements, minimizing downtime, spare inventory and keeping your operations running smoothly.

Flexible Management Options

Cloud Management (ALMS) - Included*

AirLink Management Service (ALMS) cloud management platform is included in your AirLink Complete or AirLink Premium subscription. Ideal for organizations that need the scalability and cost-effectiveness of a cloud platform. For organizations driving towards a zero-trust strategy, the Hybrid Cloud option adds an extra layer of control by requiring on-premise authorization for cloud operations and isolating management from operational networks.

*Included with active AirLink Complete/Premium subscriptions

On-Premise Management (AM/AMM) - Optional*

AirLink Manager (AM) and AirLink Mobility Manager (AMM) provide on-premise router management options for environments where cloud solutions are not an option. AM (on-premise platform) is ideal for organizations monitoring fixed assets, while AMM (available as on-premise or hosted platform) features advanced vehicle tracking capabilities for mobile deployments.

*AM/AMM is not included in AirLink Complete or AirLink Premium subscriptions and requires a separate paid license. Contact your Semtech representative for pricing and deployment options

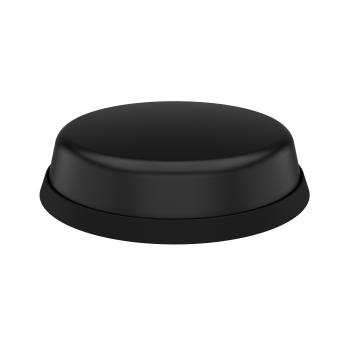

Antennas

Accelerate your deployment with always-on, end-to-end connectivity provided by our portfolio of high performance antennas.

AirLink® EX400 – Router Specifications

Print Specs

KEY FEATURES
Cellular Radios	5G RedCap (Reduced Capability)
Wi-Fi	Single 1×1 MIMO Wi-Fi 6 (Optional)
Ethernet	Dual Ethernet (1 Gbps)
Serial	–
GNSS	Dual-band GNSS
CAN	–
I/O	1 GPIO
USB	USB Type-®C (data only)
Bluetooth	–
IP Rating	Metal Housing (IP30 Rated)
Services	AirLink Complete (1 year included)
Operating System	AirLink OS
Management System	AirLink Management Service (ALMS) – Included with AirLink Complete subscription AirLink Manager (AM) / AirLink Mobility Manager (AMM) – Paid Option

CELLULAR
Region	Global
Technology	5G RedCap
Peak Downlink (Theoretical)	226 Mbps
Peak Uplink (Theoretical)	120 Mbps
Category	5G RedCap
MIMO	2×2
RF Connectors	SMA
SIM	Dual SIM (Nano-4FF)

FREQUENCY BANDS
	1	2	3	4	5	7	8	12	13	14	17	18	19	20	25	26
5G	n1	n2	n3	–	n5	n7	n8	n12	n13	n14	–	n18	–	n20	n25	n26
4G	B1	B2	B3	B4	B5	B7	B8	B12	B13	B14	B17	B18	B19	B20	B25	B26

FREQUENCY BANDS
	28	34	38	39	40	41	42	43	48	66	70	71	77	78	79	106
5G	n28	–	n38	–	n40	n41	–	–	n48	n66	n70	n71	n77	n78	n79	–
4G	B28	B34	B38	B39	B40	B41	B42	B43	B48	B66	B70	B71	–	–	–	B106

*For carrier specific band support please refer to the hardware user guide.

WIRELESS CERTIFICATION
Regulatory	FCC, IC/ISED, PTCRB, GCF Planned: CE, RED, RCM
Carrier	AT&T, Verizon Planned: T-Mobile, Telus, Rogers, Bell, Telstra
Public Safety	FirstNet® Capable
Other	Anterix Active (Band 106)
Part Numbers	1105302 EX400 1105303 EX400 with Wi-Fi

WI-FI (Optional)
Wi-Fi Standard	Wi-Fi 6
Access Point	Dual (2.4 & 5GHz)
Client (Depot/WAN)	Yes
Client & AP	Yes
Peak Throughput	600 Mbps
MIMO	Single 1×1
Security	WPA2/3 Personal WPA2/3 Transitional WPA2 Enterprise (Client Only)
Clients	16 per radio
SSID	1
Output Power	16 dBm (for 2.4 GHz) & 14 dBm (for 5 GHz) per chain conducted transmit power
Frequency	2.4/5 GHz
RF Connectors	SMA (Reverse Polarity)

ENVIRONMENTAL
Operating Temperature	25°C to +70°C / -13°F to +158°F
Storage Temperature	-40°C to +85°C / -40°F to +185°F
Humidity	95% RH @ 60°C
Military Specification	–
IP Rating	IP30

INDUSTRY CERTIFICATIONS
Environmental Directives	Planned: RoHS2, REACH, WEEE, Prop 65

POWER
Input Voltage	9 to 30 VDC
Power Consumption	Idle Power: 840 mW (70 mA @ 12VDC) – single Ethernet enabled Standby Mode Power: 24 mW (2 mA @ 12 VDC) Triggered on low voltage, I/O or periodic timer
Power Modes	Low voltage disconnect to prevent battery drain Ignition Sense with time delay shutdown Configurable features and ports to optimize power consumption

NETWORK AND ROUTING
Features	Semtech Cognitive Wireless IPv4 and IPv6 Routing Network Address Translation (NAT) Port Forwarding DHCP Server IP Passthrough LAN Segmentation IPv4 Passthrough and IPv6 Prefix Extension WAN/LAN Connection Policy Management Policy-Based Routing Configurable MTU size Static Routing WAN Ethernet
QoS	Application/Traffic Priority Queuing
WAN Monitors	Connection Failure Recovery

SECURITY
AAA	802.1x /Radius authentication with Wi-Fi and Ethernet
Firewall	Stateful firewall with port forwarding, DMZ
WLAN Encryption	WPA2/3 Personal / Enterprise
Firmware Update	Secure Firmware Update

LAN (ETHERNET/USB)
	USB to Ethernet

*For carrier specific band support please refer to the hardware user guide.

VPN
Features	IPsec protocol with IKEv1/IKEv2 FIPS 140-2 Level 1 compliant
Encryption	AES128/AES192/AES256
Hashing	SHA256/SHA384/SHA512
Key Exchange	DHGroup14/15/16/17/18/19/20/21 LAN to LAN and Host to LAN Up to 10 concurrent tunnels per link MOBIKE protocol IP compression Full/Split Tunnel Dead Peer Detection (DPD)

ROUTER MANAGEMENT INTERFACES
	ALMS (included with AirLink Complete subscription) AM/AMM (paid option) Local web user interface REST API (Beta) licensed via ALMS

EDGE COMPUTING
	Support for Edge Compute Docker Containerized Applications licensed via ALMS (Early Adopters)
RAM^1,2	600 MB
Storage (Flash)¹	500 MB
CPU	Dual Core ARM Cortex A55 (Dual Core ARMv8.2-A 64-bit)
	¹ Approximation available to containers (not device total) ² Depends on other enabled features

AirLink Complete (1 year included with router purchase)
Support	24/7 technical support*
Hardware Warranty	1-year standard hardware warranty Extended hardware warranty up to 5 years with current subscription**
Device Management	AirLink Management Service (ALMS)*
Software Updates	Unrestricted critical firmware updates through at least December 31st, 2030

*With current AirLink Complete subscription
**Full warranty terms are available at www.sierrawireless.com/end-user-warranty

AirLink Premium (optional upgrade) Includes all AirLink Complete features* and adds:
Advanced Mobility Reporting	Coverage and fleet reporting*
Advance Replacement	Same-day shipping for in-warranty router replacements*

*With current AirLink Premium subscription

RELIABILITY
MTBF	1105302 EX400 : 95.91 years 1105303 EX400 Wi-Fi: 92.35 years Ground Benign, 25°C MTBF calculations performed per Telcordia “Reliability Prediction Procedure for Electronic Equipment” document number SR-332, Method I, Issue 3

ACCESSORIES
In The Box	EX400, DC Power Cable, Quick Start Guide, AirLink Complete Leaflet
Other Accessories (sold separately)	2000579 AC Adapter, 12VDC 6001529 DIN Rail Bracket 2000522 DC Power Cable For Antenna options visit: here

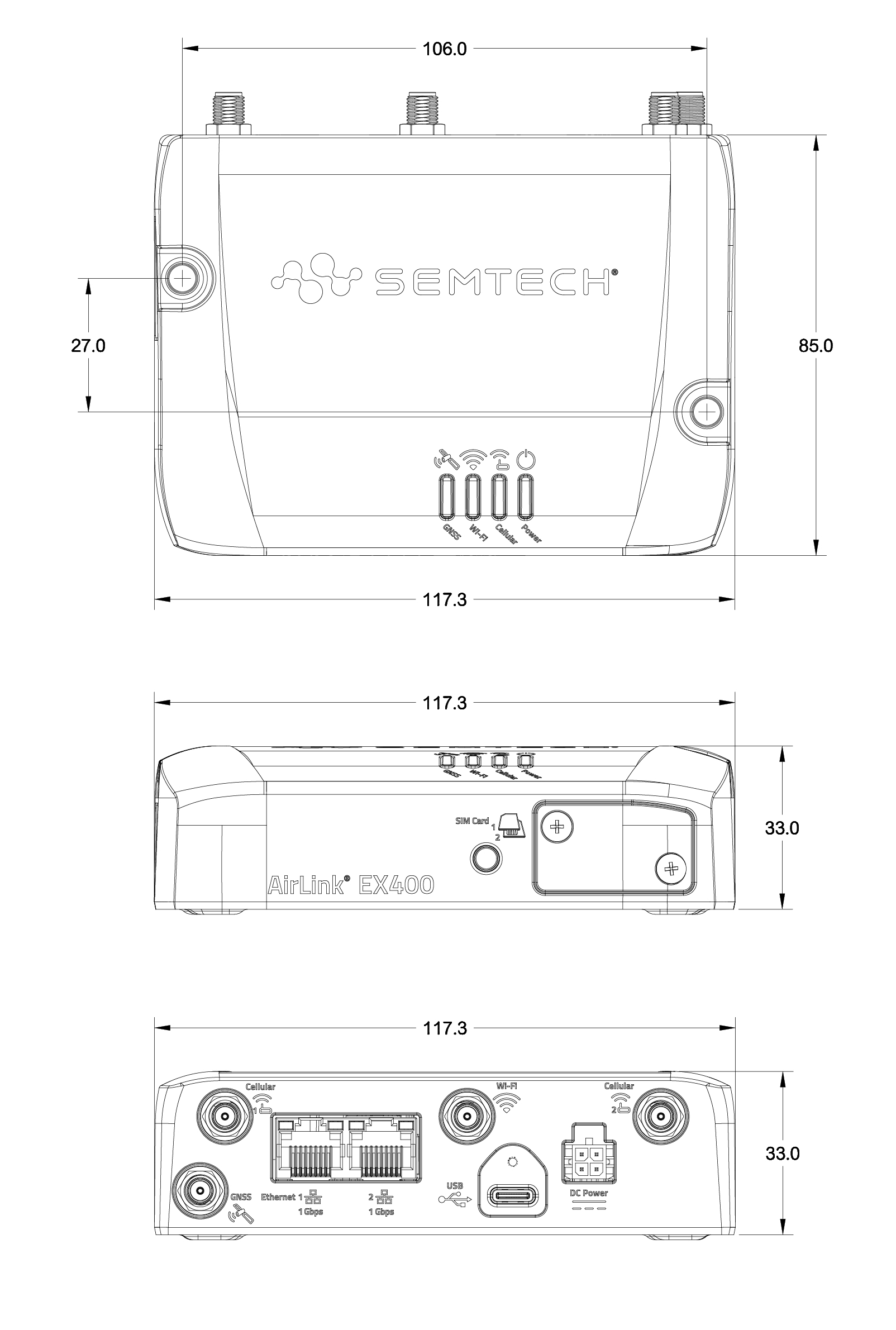

DIMENSIONS
Size	117.3 x 33 x 85 mm (117.3x33x94 mm including SMA connectors) 4.62 x 1.30 x 3.35″ (4.62×1.30×3.7″ including SMA connectors) Same bolt pattern as RV
Weight	320.2 g / 0.71 lb (EX400 Wi-Fi)
